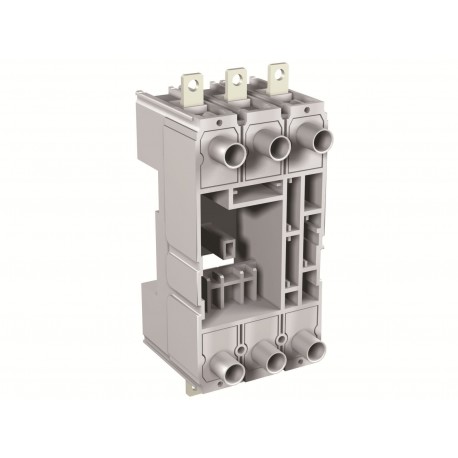

1SDA068194R1 ABB XT3 P FP 4p EF
1SDA068194R1
068194
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
XT3
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 1SDA068194R1 ABB XT3 P FP 4p EF serves as a fixed-pattern base designed for mounting four-pole molded case circuit breakers securely inside electrical distribution panels. These fixed bases provide robust structural support and reliable primary contact points for industrial switchgear installations. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: afb69e4a-f47d-4543-9b14-1aeb1d43e90a Italy (IT)
- Simplified SCIP: fcb9d2f1-a92d-4ebd-bb93-aabd72ea6fa0 Germany (DE)
- Order Code US and Canada: KXT3PFPEF-4
- E-Number (Finland): 3641031
- EAN: 8015644020903
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.32 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 120 mm
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | afb69e4a-f47d-4543-9b14-1aeb1d43e90a Italy (IT) |
| Simplified SCIP | fcb9d2f1-a92d-4ebd-bb93-aabd72ea6fa0 Germany (DE) |
| e7aa4257-bf46-41c6-bc49-07089edd26a0 Sweden (SE) | |
| 1289d8bf-5711-4378-9dc6-33fd61a5dd76 Poland (PL) | |
| bf32da19-3db0-401c-9d16-02b8d83688ee Netherlands (NL) | |
| 263f4ae6-d0ca-47f8-8c09-e98d7bf513a3 Estonia (EE) | |
| b290fabb-1fb1-4330-bbf0-08c537eee099 Greece (GR) | |
| a11eeb6f-e0c2-4eed-9e7a-f7afbd54e486 Portugal (PT) | |
| 781657cc-a51d-42ef-9b5f-507ed7fef4d0 Bulgaria (BG) | |
| 5dae7b9d-dc6e-4323-a862-e13c4e1aecb8 France (FR) | |
| 5c705829-9e13-4527-b7db-99cc3ceb652e Sweden (SE) | |
| 1b8ab5be-d08f-4cc3-b7a5-8aac424bddcb Germany (DE) | |
| af8388d0-6dd6-4608-9640-ca1278f00c5d Germany (DE) | |
| b6cea83d-28dc-43e6-92d8-cb67b5d16a6c France (FR) | |
| 4bad9706-15e9-4385-b089-39348dc058f8 Netherlands (NL) | |
| 512333ba-ac8e-47cf-b4f2-60045371bf38 Spain (ES) | |
| 41aec7d6-9bd6-4e50-ba64-54fbf2f39466 Netherlands (NL) | |
| 14b9831d-5690-436e-b4fc-de9e9ef204c9 Poland (PL) | |
| 200c731d-7900-4d47-b311-75c48d8d5c90 Norway (NO) | |
| 3f4ba733-0bdb-4914-85f0-ff46dd127020 Finland (FI) | |
| d1ef11bb-682b-429d-a8e1-0d5cceaa9de5 Netherlands (NL) | |
| 92e1fbc0-5d69-45e2-ab20-98dba1ebd982 Germany (DE) | |
| a7f00d2d-f3ef-4d72-b634-d32ef39c81e2 Denmark (DK) | |
| 4bbde414-2bf4-4007-b36e-8c7025e93624 Germany (DE) | |
| 428a3ef0-aadc-4273-814f-b099b155f6e6 Croatia (HR) | |
| df36e1f8-02fb-4198-bd00-65fd2a53f82b Czech Republic (CZ) | |
| 24bcbf8f-73d1-4df8-92e4-b16eb50088bd Poland (PL) | |
| b95ed302-92ed-4787-b8a0-8abb7924d9b2 Netherlands (NL) | |
| Ordering | |
| Order Code US and Canada | KXT3PFPEF-4 |
| E-Number (Finland) | 3641031 |
| EAN | 8015644020903 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.32 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 180 mm |
| Package Level 1 Depth / Length | 225 mm |
| Package Level 1 Gross Weight | 1.47 kg |
| Package Level 1 EAN | 8015644020903 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Standards | IEC60947-2 |
| UL489 | |
| Sub-type | XT3 |
| Suitable For | XT3 |
| Suitable for Product Class | SACE Tmax XT |
| Terminal Connection Type | Plug-In Circuit-Breakers |
| Front Extended | |
| Version | P |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000720R0005 |
| Classifications | |
| ETIM 7 | EC002043 - Chassis part power circuit breaker |
| ETIM 8 | EC002043 - Chassis part power circuit breaker |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
