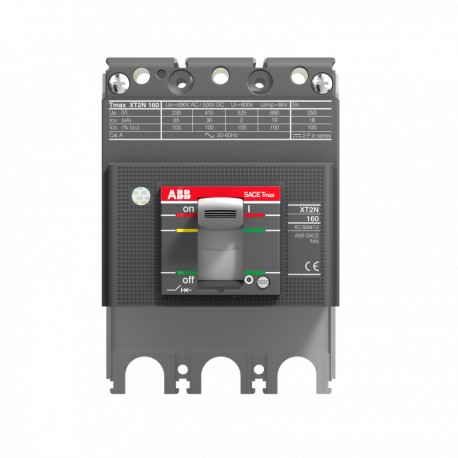

1SDA068164R1 ABB XT2S160 PART OF INTERRUPTION 3P F F
1SDA068164R1
068164
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A molded case circuit breaker like the 1SDA068164R1 ABB XT2S160 PART OF INTERRUPTION 3P F F is engineered to protect electrical distribution systems against overloads and short circuits in commercial and industrial environments. It provides reliable fault interruption to safeguard machinery and personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2348
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1856
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: f0277866-c47a-4fc8-bcef-3e6fca426e26 Italy (IT)
- Simplified SCIP: 2e499bf0-c60f-4ee7-9331-f69b327be1a1 France (FR)
- E-Number (Finland): 3640578
- EAN: 8015644020613
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2348 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f0277866-c47a-4fc8-bcef-3e6fca426e26 Italy (IT) |
| Simplified SCIP | 2e499bf0-c60f-4ee7-9331-f69b327be1a1 France (FR) |
| e3ed27d0-ffb3-43b5-b37d-a227615004a1 Germany (DE) | |
| 218f3fbb-d600-40a3-a628-b0f1078cfd6d Czech Republic (CZ) | |
| 226558bf-027f-45dc-8341-af64d34ebf68 Germany (DE) | |
| 59252041-c900-427c-981e-4de4c194e5ff Croatia (HR) | |
| 8acb2308-8f5b-43e2-b7bb-d76d0dfd5dfe Germany (DE) | |
| 2e90776b-9585-426b-96a5-d6915f23d7d9 Portugal (PT) | |
| 5937112b-3e72-48e3-b4e3-72927263793e Denmark (DK) | |
| bbfd1071-7aa0-4509-a44b-cace8fc8c5d1 Sweden (SE) | |
| 61b3d234-924d-455d-be87-f58dc46a9021 Belgium (BE) | |
| 8555da20-768e-40d1-ae6e-9309037a9a20 Spain (ES) | |
| c9e3d2dc-63d2-4e7a-96d7-49bdf3eae775 Hungary (HU) | |
| 2cabdbf6-2738-4ccd-8385-d52226110db1 Greece (GR) | |
| 2d8c22ca-c93b-423b-8505-151d24ade891 Germany (DE) | |
| d3666861-f108-47e9-8195-b7e1c7fa4fb8 France (FR) | |
| 25383943-6542-4a23-96c6-3e6ed4fb1f89 Belgium (BE) | |
| b2b0fbdc-e240-4bb7-b840-6a745ec85a66 Norway (NO) | |
| 394e6782-7242-444a-b3d3-85e9749d1a91 Netherlands (NL) | |
| a02cabf5-3586-4c02-a294-1eabf2f93445 Sweden (SE) | |
| a1a5f319-3b02-4cc8-8261-5666a855413e Finland (FI) | |
| aa283aa3-8567-4cf6-a0fa-f59f12519401 Hungary (HU) | |
| 6e671561-7320-475d-8232-8cd51ff18b34 Poland (PL) | |
| ce320731-a8c3-4de4-a8eb-fc346a44295e Estonia (EE) | |
| 3c8b34f4-d97e-4339-962d-c7c517d9d039 Bulgaria (BG) | |
| 3d36f69f-3c9c-416b-97b7-630a898a1dfc Poland (PL) | |
| e3088839-a732-447f-b262-28b451d00870 Poland (PL) | |
| cacde370-df57-4dc3-bfb6-ccc439b50680 Germany (DE) | |
| Ordering | |
| E-Number (Finland) | 3640578 |
| EAN | 8015644020613 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 0.82 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 135 mm |
| Package Level 1 Gross Weight | 0.92 kg |
| Package Level 1 EAN | 8015644020613 |
| Additional Information | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Version | F |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 2CDC210017C0101 |
| 1SDC210100D0206 | |
| 1SXF210033C2001 | |
| 1SDC210099D0206 | |
| 1SXF210034C2001 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| Wiring Diagram | |
| Instructions and Manuals | 1SDH000721R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
