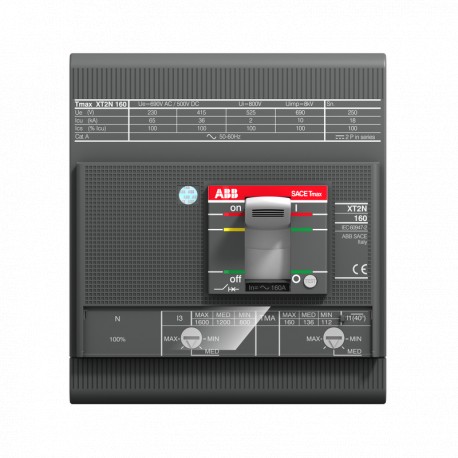

1SDA067574R1 ABB XT2S 160 TMD 32-320 4p F F
1SDA067574R1
067574
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing dependable thermal-magnetic trip protection, the ABB XT2S 160 TMD 32-320 4p F F circuit breaker guards industrial electrical circuits against overcurrent conditions. Such compact breakers are widely integrated into machine control panels and distribution boards to ensure safe operation and quick fault interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2348
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1856
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: cc233e8f-9e6b-4c6a-a22b-c410abdcb24d Italy (IT)
- Simplified SCIP: d8f2dadc-f429-4da1-a8c5-8617dfe63b4b Belgium (BE)
- Order Code US and Canada: XT2SE4032AFF000XXX
- EAN: 8015644014704
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2348 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | cc233e8f-9e6b-4c6a-a22b-c410abdcb24d Italy (IT) |
| Simplified SCIP | d8f2dadc-f429-4da1-a8c5-8617dfe63b4b Belgium (BE) |
| 528d53a4-9562-455f-8f7e-e5545aaae728 Hungary (HU) | |
| 2619f1fe-a142-4e94-bc6a-e47b473adf32 Spain (ES) | |
| 1ddddd93-aebe-4cd7-aca4-65d99a87f84e Germany (DE) | |
| c31d42f7-75b9-4004-8ee7-a5230093b6b0 Denmark (DK) | |
| 73e75842-f1a3-41c8-a843-78a3ac986dab Sweden (SE) | |
| 8e6202ac-7dc3-41d7-9df8-18294155659d Germany (DE) | |
| 5d0b26b3-6024-45f2-bbdb-ba55d2bfcbf6 France (FR) | |
| e85e869d-4dd8-432a-ae5c-bac37698316a Portugal (PT) | |
| a3e96bb0-ff5d-49cb-ba62-2798c2788631 Croatia (HR) | |
| 280b06a4-2590-48fe-97e8-72c2a42065b7 Germany (DE) | |
| 05156b4c-8804-4dd6-8cb2-e9377e92869b Germany (DE) | |
| 8a320b36-6794-4fd1-8eb5-3d34fe697664 Czech Republic (CZ) | |
| 73201c1d-f1e0-48a0-bfd5-c854748afcbc France (FR) | |
| 0219c419-f810-4161-8608-63ae7ceb0f31 Poland (PL) | |
| 9d6a4bcd-13ce-453c-a0f2-7be88f72ddbb Poland (PL) | |
| 841fc56d-5fd5-4020-b0bb-229a15784dd9 Germany (DE) | |
| 4808af2d-7c7e-4d6e-8763-f86ddc6947a0 Greece (GR) | |
| 76bfa5d7-7904-4e81-9039-475ebaf549b1 Estonia (EE) | |
| 14be1c63-ed8f-4434-80cd-32e1bb57ca99 Belgium (BE) | |
| e15033fc-9f9a-4734-a7c1-977ffb4b5c1b Finland (FI) | |
| a07481e7-f7b8-460e-9b94-670eafdb61de Poland (PL) | |
| c0caa3d1-fc13-47b0-9d98-e4fcaeb4e2b0 Hungary (HU) | |
| 207d62db-bf1f-49f8-99f5-36a58d032e9b Bulgaria (BG) | |
| 1ed7dbbe-192f-41cc-9c25-bb76890295e6 Netherlands (NL) | |
| a6457aa2-bc90-42f1-bfe9-11eb11912f28 Sweden (SE) | |
| 87a38a25-d7a5-42a6-8960-216377e073ed Norway (NO) | |
| Ordering | |
| Order Code US and Canada | XT2SE4032AFF000XXX |
| EAN | 8015644014704 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 120 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 208 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Gross Weight | 2.117 kg |
| Package Level 1 EAN | 8015644014704 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 2.57 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 32 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 320 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 22.4...32 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1002 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000721R0100 |
| Mechanical Drawings | 1SDH000721R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000721R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
