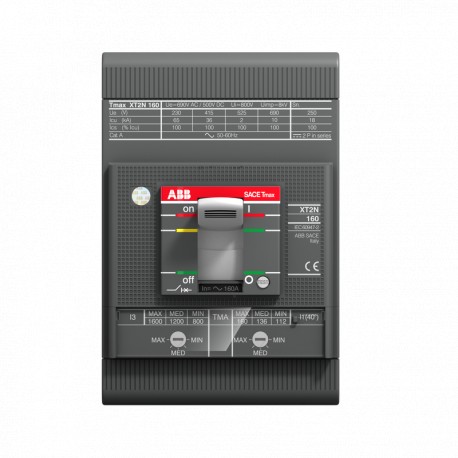

1SDA067553R1 ABB XT2S 160 TMD 32-320 3p F F
1SDA067553R1
067553
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA067553R1 ABB XT2S 160 TMD 32-320 3p F F acts as a thermal-magnetic molded case circuit breaker, offering reliable protection against both thermal overloads and instantaneous short circuits in electrical distribution layouts. Technicians routinely install such breakers in industrial enclosures to safeguard sensitive wiring and operational assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2348
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1856
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: ce23f4ae-35ba-49ba-8bcb-1af092fb2c20 Italy (IT)
- Simplified SCIP: 2b5eaa92-205a-40b9-bca7-7e52401ac428 France (FR)
- Order Code US and Canada: XT2SE3032AFF000XXX
- E-Number (Finland): 3638611
- EAN: 8015644014490
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2348 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | ce23f4ae-35ba-49ba-8bcb-1af092fb2c20 Italy (IT) |
| Simplified SCIP | 2b5eaa92-205a-40b9-bca7-7e52401ac428 France (FR) |
| 23e1caf1-645d-4011-b1bd-567a512901dc Spain (ES) | |
| ee5b4bb6-f1fb-4651-a746-778bd2eeb374 Hungary (HU) | |
| 8776e078-a8b0-432d-b5bd-b8361a90fe23 Belgium (BE) | |
| cafa272f-e73a-473a-8f7f-dc8cd63278f4 Germany (DE) | |
| ea8a9633-732a-4fd2-b78c-da111d5b6bbe Czech Republic (CZ) | |
| c2ab4b42-18f9-4042-9282-9aae651f22d8 Sweden (SE) | |
| 542b5cb7-04e5-4e34-854d-6157c44a31e7 Portugal (PT) | |
| 75364400-521b-471c-b1ac-4ffbb6824e70 Denmark (DK) | |
| 6239c29b-966e-45a7-b632-beaf0e63c84b Germany (DE) | |
| 733b23bd-e75a-4f1a-873a-95c5313bc5b4 Germany (DE) | |
| 043c41c4-6240-457e-b330-9093b5fd26c3 Croatia (HR) | |
| f60ba0b2-b2ed-48f3-a498-9c2b23430b2b Germany (DE) | |
| 1db306bb-beec-4694-aea5-39a6e0bbf82d Norway (NO) | |
| 8801ee98-b3a8-4b58-9e4b-67a12206e7ed Netherlands (NL) | |
| 095641cf-77ae-4600-bb35-87c96dbe5444 Sweden (SE) | |
| aa6fb5a3-0908-467d-a472-03f2f23ade01 Bulgaria (BG) | |
| be054cbb-d051-46bf-940d-3051d79d0240 Poland (PL) | |
| 19359a19-6b7b-405d-af0d-45756d0b1630 Poland (PL) | |
| f31eb2c5-8f6a-4af3-9a27-89b88358c8de Hungary (HU) | |
| bee6c10f-1483-4f75-829a-a9a816a20ec9 Poland (PL) | |
| c778cea7-8f44-48f5-be7d-61a151c865bf Finland (FI) | |
| 633608f6-ccb8-48c3-808c-c45159d9ab2c Estonia (EE) | |
| 891d9794-1b6c-40b5-8af5-b35b1da4af6a Belgium (BE) | |
| 5a5a49df-463d-4317-9073-0b0d161b6222 Germany (DE) | |
| 8d288905-05d5-4fdb-90ba-9570c71f0ab6 Greece (GR) | |
| 1bfc0c02-fab0-49b1-8a3c-dfe1a09a50c6 France (FR) | |
| Ordering | |
| Order Code US and Canada | XT2SE3032AFF000XXX |
| E-Number (Finland) | 3638611 |
| EAN | 8015644014490 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 208 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Gross Weight | 1.664 kg |
| Package Level 1 EAN | 8015644014490 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 2.57 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 32 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 320 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 22.4...32 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1001 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000721R0100 |
| Mechanical Drawings | 1SDH000721R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000721R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
