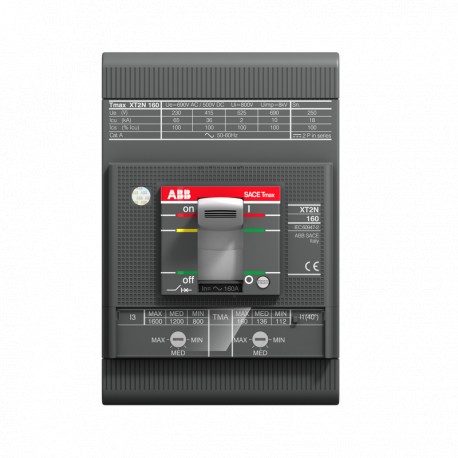

1SDA067556R1 ABB XT2S 160 TMA 63-630 3p F F
1SDA067556R1
067556
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to safeguard electrical equipment from overcurrent conditions, this Abb 1SDA067556R1 circuit-breaker automatically disconnects power when fault currents arise in an installation. Panel builders and engineers specify these devices to maintain safety and compliance across industrial distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2348
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1856
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 1356d4aa-8ac0-4c90-a0a6-7bd20dbf382e Italy (IT)
- Simplified SCIP: 5c697f83-ca81-4283-a9be-611d4112911a Germany (DE)
- Order Code US and Canada: XT2SE3063BFF000XXX
- E-Number (Finland): 3638183
- EAN: 8015644014520
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2348 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 1356d4aa-8ac0-4c90-a0a6-7bd20dbf382e Italy (IT) |
| Simplified SCIP | 5c697f83-ca81-4283-a9be-611d4112911a Germany (DE) |
| 904e26e1-b4f8-446c-bcad-9aa8f98e42b9 Netherlands (NL) | |
| 1664f057-cbae-4159-8779-ec95f143db2a Spain (ES) | |
| 4fc7a468-c5ba-4bff-a584-8685ec52f288 Netherlands (NL) | |
| b44ff0ce-ec9f-428c-9384-adbfb0d3a081 Bulgaria (BG) | |
| 4b295e8e-2540-41ab-8e3b-baee28071515 Sweden (SE) | |
| 00fba872-10c1-45b1-9422-6fa193bcf6c2 Poland (PL) | |
| 424f2299-cff1-4f85-8472-b9b9d8454dcd France (FR) | |
| 3389ba5f-3328-46ab-b5a0-db2105f1e8e4 Croatia (HR) | |
| 1dc918cc-06e4-46de-9766-201bea1beb1b Czech Republic (CZ) | |
| ad59485a-8d3c-4d59-93ba-2c60c2a7a508 Poland (PL) | |
| 8b836f51-1f94-497d-a2de-1f6e8d352126 Sweden (SE) | |
| 761e6038-a9f8-492f-a604-350f95784e3e Germany (DE) | |
| 8ce021f5-d2fc-4312-bce1-35abcf47b93f Germany (DE) | |
| 19ca41ae-ae94-4c94-8b1c-3db95f936525 France (FR) | |
| fb53d5fa-faa9-4ad6-a19c-240b80f79df6 Poland (PL) | |
| 34d65c78-b470-4060-952a-7b62093cb521 Norway (NO) | |
| a93a0f59-3251-4210-ae7d-9294ba2854fa Finland (FI) | |
| b13374ee-6f72-4e10-ae12-33e81bcfc856 Netherlands (NL) | |
| aafcd53f-4f76-4a48-991b-3c70373b814f Germany (DE) | |
| 08750b2c-f6f5-4cbc-af6e-920b98268ae9 Netherlands (NL) | |
| 8699cdd4-d2d2-46a9-8bf6-ca7a24c69be5 Netherlands (NL) | |
| a49b2555-f610-49c5-be8a-a6368bfb46c1 Estonia (EE) | |
| e34dc943-512d-492d-8de5-8df021f436d6 Greece (GR) | |
| f8083088-0978-4053-95e8-05bd971aba66 Portugal (PT) | |
| 96c89ff8-eb84-4285-bbd1-3879d6bc3b49 Denmark (DK) | |
| 7de00697-df77-43ea-8dfd-a6576ad93b54 Germany (DE) | |
| Ordering | |
| Order Code US and Canada | XT2SE3063BFF000XXX |
| E-Number (Finland) | 3638183 |
| EAN | 8015644014520 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 208 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Gross Weight | 1.64 kg |
| Package Level 1 EAN | 8015644014520 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 4.85 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 63 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 300…630 A |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| (250 V DC) 2 Poles in Series 50 kA | |
| (500 V DC) 3 Poles in Series 50 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMA |
| Release Type | TM |
| Setting Range | 44.1...63 A |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1001 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000721R0100 |
| Mechanical Drawings | 1SDH000721R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000721R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
