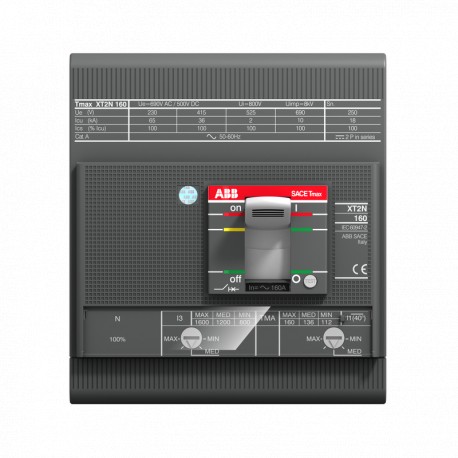

ABB 1SDA067579R1 1SDA067579R1 ABB XT2S 160 TMA 100-1000 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA067579R1 ABB XT2S 160 TMA 100-1000 4p F F

1SDA067579R1

067579

ABB

1 Pcs.

XT2S 160 TMA 100-1000 4p F F XT2S160 TMA R100 Im1000 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 55.70 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2348
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108469A1856
9AKK108468A1891
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP3ab5640d-37fb-4cae-81f8-cfec9c602b02 Italy (IT)
Simplified SCIP2d089f31-cb88-4915-8170-59efad6bb39d Germany (DE)
1682bfc3-bfff-4b4b-b66a-f09c758ac429 Netherlands (NL)
72d025f7-fcb6-4240-9b25-35ee1675e21d Bulgaria (BG)
ce33effe-16fc-4560-8618-61463d052835 Sweden (SE)
e6b22c86-4c0f-49bf-b640-50bed22d6edd Poland (PL)
2991b0f8-1acd-4a14-897e-6916f60b24fd France (FR)
9db1cdbe-c313-47ba-a0b2-7ceef06aa1f1 Poland (PL)
ec8b4785-15d3-444c-85c8-3680b3822b0c Norway (NO)
43ee3bd3-b26d-4a36-ab66-efb14b09a97d Finland (FI)
08fe280f-9a1b-4882-bcc6-478ef91fea5c Netherlands (NL)
791cd437-8385-410e-a7b9-97f8e56bea72 Germany (DE)
5d2d5d65-fa86-4380-b01b-4bb882cbe325 Netherlands (NL)
d385cc2f-5f88-42bf-a647-9ddb3d4530ef Netherlands (NL)
f9807cb5-3cd9-41a0-9a89-948a9ffc334c Poland (PL)
bf1635c3-de67-446a-8dd4-aaa10a6e2f7f Sweden (SE)
c072697a-9563-4ec0-a80d-00b1c942044f Germany (DE)
08e7fa02-2acd-4bf3-93a7-cc9f03ad363c Germany (DE)
ed427cf6-fcf7-4c40-a60b-d21a72d4c839 France (FR)
46d51828-4bb9-4245-9535-1c58e21954ba Netherlands (NL)
293861c1-a0df-49d4-b2f0-05d2adf8bd36 Spain (ES)
5116c9d0-6ced-48b9-a24c-7c804e156a57 Estonia (EE)
c215591f-8132-4d7e-963d-b82ca6d8fa82 Greece (GR)
c37f9121-d2ca-4d88-b85a-792a5e81795e Portugal (PT)
fe667a36-bf30-4170-a9a6-2b48fa5c0106 Denmark (DK)
2784b2c1-3172-4b77-95d3-e16b44fec3b0 Germany (DE)
0d8519f1-4f4a-431b-87bf-9963601202cd Croatia (HR)
80e6f324-02d5-4391-b66c-67b0ba5a86f9 Czech Republic (CZ)
Ordering
Order Code US and CanadaXT2SE4100BFF000XXX
E-Number (Finland)3640599
EAN8015644014759
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width120 mm
Product Net Height130 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.45 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width131 mm
Package Level 1 Height212 mm
Package Level 1 Depth / Length147 mm
Package Level 1 Gross Weight1.55 kg
Package Level 1 EAN8015644014759
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 32.5..100 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 8.08 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)100 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)500…1000 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)160 A
Recommended Screw DriverMain Circuit M6
ReleaseTMA
Release TypeTM
Setting Range70...100 A
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT2
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque6 N·m
VersionF
CAD Dimensional Drawing1SDH002230A1002
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5901
GL Certificate1SDL000163R0093
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000721R0100
Mechanical Drawings1SDH000721R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000721R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
