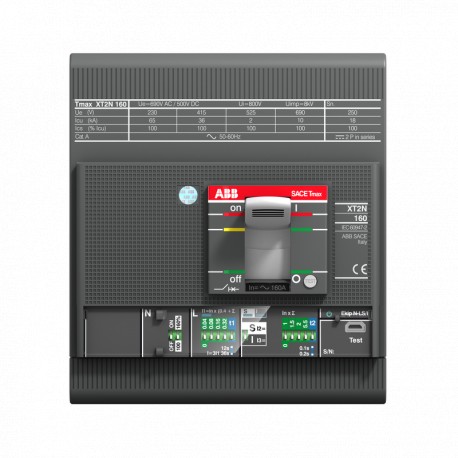

1SDA067838R1 ABB XT2S 160 Ekip LS/I In 160A 4pFF InN 100%
1SDA067838R1
067838
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB XT2S 160 Ekip LS/I In 160A 4pFF InN 100% is a four-pole molded case circuit breaker equipped with electronic trip units to protect electrical systems against overloads and short circuits. It is widely used in industrial control panels for reliable branch circuit protection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2349
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108469A1855
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: ee27fc77-8c55-43e6-8e39-76c7cf22ae51 Italy (IT)
- Simplified SCIP: 7265a3d0-fa22-44fa-a74a-242c22114294 Belgium (BE)
- Order Code US and Canada: XT2SE4160EFF000XXX
- E-Number (Finland): 3640592
- E-Number (Sweden): 3182038
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2349 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108469A1855 |
| 9AKK108468A1897 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | ee27fc77-8c55-43e6-8e39-76c7cf22ae51 Italy (IT) |
| Simplified SCIP | 7265a3d0-fa22-44fa-a74a-242c22114294 Belgium (BE) |
| 2bacd5e9-251e-4a59-add5-33528ffae77f Spain (ES) | |
| fa0b0100-123a-4ecd-930b-0aa72a9bb3e4 Hungary (HU) | |
| 438d4de0-3d0a-4990-be80-b267be0efc89 Czech Republic (CZ) | |
| 7ca5b865-3fbb-437c-be20-222ab93ff498 Germany (DE) | |
| 9a19fc06-9a65-4f79-8f38-60d1d150b3fd Sweden (SE) | |
| 498360e9-59a3-46e0-8e87-961c8b67b819 Denmark (DK) | |
| 16a665be-7dc3-4fbd-8b70-8b840033da9e Germany (DE) | |
| 049a8bb2-7e67-4823-b69f-dd8ede7a0dc7 Germany (DE) | |
| 37531a5d-bb37-4c84-8602-b0b128b1e3d3 Croatia (HR) | |
| 4d7347e4-4055-4424-a720-64ceadc0f734 Germany (DE) | |
| d1c7a318-9c93-4d6f-8fbf-3212365d8bc1 Sweden (SE) | |
| 64252530-e061-4c64-8107-07045dd0c49e Norway (NO) | |
| 14998db5-4727-42ad-b801-a7b0a22ca46d Netherlands (NL) | |
| 66799b51-b8b9-4e04-b4df-48c1a294a671 Poland (PL) | |
| e6f221be-ea18-49de-9781-85ee45e1fd54 France (FR) | |
| f2d2f604-1932-421d-b715-6ed6938dc911 Bulgaria (BG) | |
| 0d85c813-66d9-4413-ad6c-858e7fdcd26c Poland (PL) | |
| c08a748d-3807-4e5f-aebe-4cb676c2663e Finland (FI) | |
| 3987bee1-485b-45ba-9444-8bfadc088ff4 Hungary (HU) | |
| be5c5f22-ad2f-4c82-9e76-5c0040f694a7 Poland (PL) | |
| 2991532b-ba89-4cc3-a3f3-d4c92a922177 Estonia (EE) | |
| 821ced41-f4d3-4048-acda-62cff849e2bb Portugal (PT) | |
| 29fdceb6-dd7b-4ff2-a26d-9be76e617b60 Greece (GR) | |
| fae9caf7-1de3-46a9-941d-705c91024bfc Germany (DE) | |
| 51cd498d-f86d-4b27-8e6c-a699604bd1b0 Belgium (BE) | |
| 4382908a-a70f-4f50-82d2-22ced4961f98 France (FR) | |
| Ordering | |
| Order Code US and Canada | XT2SE4160EFF000XXX |
| E-Number (Finland) | 3640592 |
| E-Number (Sweden) | 3182038 |
| EAN | 8015644017347 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 120 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 208 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Gross Weight | 2.153 kg |
| Package Level 1 EAN | 8015644017347 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Current Type | AC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 10.8 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 160 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (240 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 36 kA | |
| (525 V AC) 25 kA | |
| (690 V AC) 12 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1002 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000721R0100 |
| Mechanical Drawings | 1SDH000721R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000721R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
