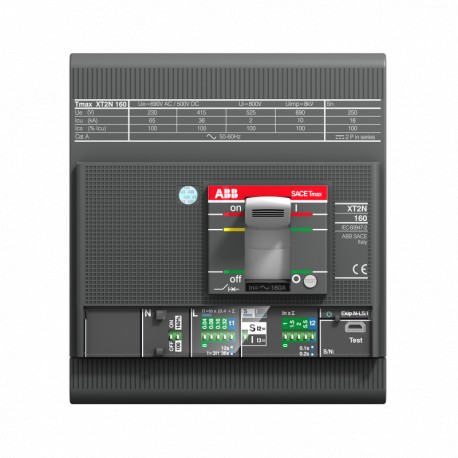

ABB 1SDA067836R1 1SDA067836R1 ABB XT2S 160 Ekip LS/I In 100A 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA067836R1 ABB XT2S 160 Ekip LS/I In 100A 4p F F

1SDA067836R1

067836

ABB

1 Pcs.

XT2S 160 Ekip LS/I In=100A 4p F F XT2S160 Ekip LS/I R100 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 55.70 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2349
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108469A1855
9AKK108468A1897
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP9eb1504a-7a1b-469a-9aea-3db985751c11 Italy (IT)
Simplified SCIPb5d595d6-1257-4b50-92a4-ff8eaf2f8a53 Germany (DE)
78bf8f35-7905-44e2-828c-ff4d8a630123 Finland (FI)
8f363337-dcd9-44fd-8990-a47c8aedddd5 Netherlands (NL)
c4899fe1-7fa7-4597-a162-ab78ce2523ba Germany (DE)
c0481b7d-5ae4-4869-81b0-5b14582752c4 Netherlands (NL)
f58445ab-1933-4e1a-b4e1-2df06d3c8131 Netherlands (NL)
69220fe9-baa2-4f4a-8b7a-b6d376f940b4 Estonia (EE)
1d386019-ef0a-4bbe-8fe0-4d496c524448 Greece (GR)
fac32ff8-d970-4b53-8f17-b70e2bd6a823 Portugal (PT)
f51e105f-7721-4fff-af4a-41c6f8f3d6d5 Denmark (DK)
bc45ec65-ae2c-44f7-ae1f-5902a7c34e62 Germany (DE)
341cd88b-ce0f-48df-b92e-6b8cf4ab40b1 Croatia (HR)
4a2050ae-16e2-45a2-86b2-fa0b6923b28c Czech Republic (CZ)
0cc43524-6de8-45ba-a48c-40ef2e0a44d1 Poland (PL)
ed92500a-2d5d-4200-9972-907f3fb6ece4 Germany (DE)
f0c18254-d5d1-4128-bcc9-96be89240a10 Germany (DE)
95a055a7-0edd-4b44-b135-e2c68a9ca3b4 France (FR)
5fc5c5ff-3c2a-4243-af4a-054bc8357e9c Netherlands (NL)
95da6abf-dbb7-4ae4-b19c-f0e32bf86233 Spain (ES)
c8db6651-c8f9-4361-aaf2-e7b1db0447f7 Netherlands (NL)
cd02d596-face-4b90-af46-d01b1e87577f Bulgaria (BG)
58e82de9-91b4-42ee-8e76-d23df4aa040a Sweden (SE)
c36bb6ee-8731-4a27-b3b9-a4ae587f86ad Poland (PL)
571835d9-c0ac-4957-ab54-a6984e860ac9 France (FR)
6d2cebb8-ed94-4b4a-b269-89c8f4ac75fb Sweden (SE)
01647068-fc96-483a-96a8-616eb5c46cab Poland (PL)
35506c41-38be-4e1c-8999-e8ab3bd5d390 Norway (NO)
Ordering
Order Code US and CanadaXT2SE4100EFF000XXX
E-Number (Finland)3640591
E-Number (Sweden)3182037
EAN8015644017323
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width120 mm
Product Net Height130 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Height208 mm
Package Level 1 Depth / Length145 mm
Package Level 1 Gross Weight2.15 kg
Package Level 1 EAN8015644017323
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 32.5..100 mm²
Current TypeAC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 4.2 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)100 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 25 kA
(690 V AC) 12 kA
Rated Uninterrupted Current (Iu)160 A
Recommended Screw DriverMain Circuit M6
ReleaseEkip Dip LS/I
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT2
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque6 N·m
VersionF
CAD Dimensional Drawing1SDH002230A1002
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical InformationSDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5901
GL Certificate1SDL000163R0093
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000721R0100
Mechanical Drawings1SDH000721R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000721R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
