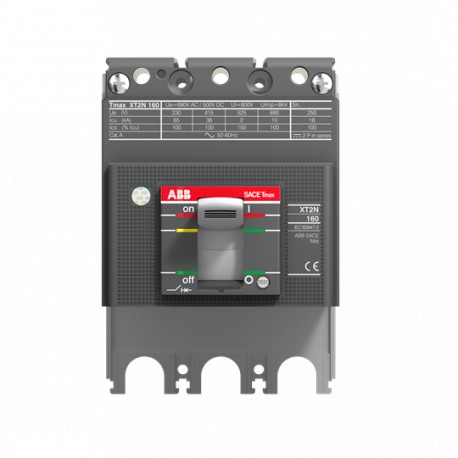

1SDA068163R1 ABB XT2N160 PART OF INTERRUPTION 3P F F
1SDA068163R1
068163
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA068163R1 XT2N160 circuit breaker component is engineered to support reliable electrical interruption and fault protection within industrial switchgear. Technicians utilize these modular components to maintain and configure high-performance power distribution systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2348
- Environmental Product Declaration - EPD: 9AKK108469A1856
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: d241d253-0496-4d90-bc57-e99828be50fb Italy
- Simplified SCIP: 7a6debf1-7e74-48ca-ae53-c0557499405d Czech Republic
- Environmental Information: 9AKK108467A6707
- E-Number (Finland): 3640558
- E-Number (Norway): 4379499
- EAN: 8015644696139
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2348 |
| Environmental Product Declaration - EPD | 9AKK108469A1856 |
| 9AKK108468A1891 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | d241d253-0496-4d90-bc57-e99828be50fb Italy |
| Simplified SCIP | 7a6debf1-7e74-48ca-ae53-c0557499405d Czech Republic |
| b3c53774-bfc6-4c82-adae-99fa9ab4d7f0 Germany | |
| 8612616e-145b-4eeb-af23-7759195d902d Croatia | |
| 1a99bc96-e6ee-45b6-8ef3-6135ea99ba97 Germany | |
| ca5afb4d-84fd-4a93-9cab-79094495826c Sweden | |
| 10386a89-5816-445a-8ee2-8ca4468217e7 Denmark | |
| 10ca03fc-7d01-4b4d-8ecc-11d5bc97f404 Belgium | |
| 0913f28c-1833-4e88-8951-5a372f6e8a1a France | |
| d41e3977-5878-4383-b331-31c60213bd47 Spain | |
| 2c70259b-3d37-46d6-8028-b257b27d0670 Hungary | |
| 2aab4d6a-f3be-4990-a7db-65ddf724da38 France | |
| 1016256a-7299-4453-8c41-a45d3c9940a3 Greece | |
| 8d6681f8-42d3-4e34-8963-ca45c9089ab7 Belgium | |
| 99dc7bb5-a5f2-4602-af43-b76d2e918f29 Estonia | |
| c857cde0-5355-4c9b-a86c-1bb68c46134e Germany | |
| 5795eae1-2f12-4831-94c6-9b6666274010 Sweden | |
| 411f342a-d9e5-4e96-b32d-f35ae7d1b483 Poland | |
| c98e4b24-58bc-41ac-bad7-cc28343e9005 Hungary | |
| 040459f3-53fa-4317-a714-0b57e52a7ffc Finland | |
| 297056d8-1960-4db1-9020-bbd2724d5fa6 Norway | |
| 6e7ca237-46a8-42ba-8f8f-00480091e54d Netherlands | |
| c5457720-f97c-4337-98a9-18325910a6f9 Portugal | |
| 2b6d4951-50b6-4ce0-8e8d-e7e824f709d5 Poland | |
| 3105c2e1-9b89-4966-86f2-b89d0eb988c4 Germany | |
| 366d819c-fea1-4712-ae91-5357f8aca75a Germany | |
| e8b63b8f-7960-4c86-95db-d10d946377e0 Bulgaria | |
| cf6dac9f-1a4d-4c66-b5c8-d8a9c90c37c4 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3640558 |
| E-Number (Norway) | 4379499 |
| EAN | 8015644696139 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.224 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Height | 215 mm |
| Package Level 1 Depth / Length | 135 mm |
| Package Level 1 Gross Weight | 1.288 kg |
| Package Level 1 EAN | 8015644696139 |
| Additional Information | |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Breaking Part |
| Version | F |
| Technical | |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| Instructions and Manuals | 1SDH000721R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
