> ABB > Molded case "Isomax-Tmax" > XT2 > 067038

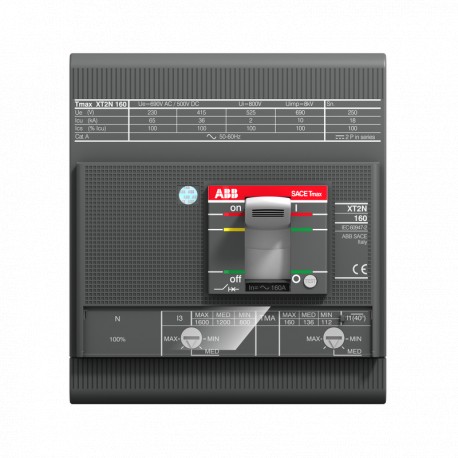

ABB 1SDA067038R1 1SDA067038R1 ABB XT2N 160 TMA 80-800 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA067038R1 ABB XT2N 160 TMA 80-800 4p F F

1SDA067038R1

067038

ABB

1 Pcs.

XT2N 160 TMA 80-800 4p F F XT2N160 TMA R80 Im800 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 55.70 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2348
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108469A1856
9AKK108468A1891
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP529d6170-32f5-4596-9d0d-fba779e0cbd7 Italy (IT)
Simplified SCIP34682549-027f-4ecf-ba6c-162b4e32d43d Poland (PL)
8b52d3a9-6a87-4294-a146-ba6c2d10d2c1 Croatia (HR)
068c602b-bcdf-4d95-a282-ee0f5ddbe190 Germany (DE)
d9c62698-591a-4305-8367-77af724d260a Germany (DE)
a4609cd4-7a05-4b58-9469-9f0a58aefdf7 Germany (DE)
0a34245c-06e1-417a-b8dd-0536786abe8c Portugal (PT)
6dd9bf55-7351-46c3-952b-63b67581cc84 France (FR)
51d945be-1bff-49db-ab77-a846197ce40a Greece (GR)
1ba0626c-95eb-4bec-acd2-71f5481e9e37 Netherlands (NL)
6c7dc029-7765-4d9c-b93f-d4b0ee88ef58 Sweden (SE)
38864210-59a3-403f-89f4-62b9c2339fc5 Estonia (EE)
e735a1a8-6313-4b7e-9e16-c510409c9781 Belgium (BE)
9f1f42ee-96cb-4df3-99c8-c6e4ca50c6e0 Finland (FI)
d9048b45-6475-4ebf-bc8c-b0b78baaaabb Hungary (HU)
600080f3-e890-4914-ab90-fbb0fd79e39c Poland (PL)
efc6d4b8-4068-4942-bc09-8e1631613075 Sweden (SE)
55e20484-e71a-446a-94ad-f7f3a2e86c0d Denmark (DK)
8f512684-898f-4d9a-96d2-d82a4d25375d Germany (DE)
0d62c191-b309-4242-a37b-2b81a20c5a5b Poland (PL)
08b52ad4-5a41-4129-b8fa-10f50fbe91ac Bulgaria (BG)
caae25b5-c231-4372-bf0f-94da4bda0c96 Norway (NO)
50853484-e786-47e3-ab8f-85d313a304f4 Belgium (BE)
78033f68-3134-4311-9e19-8ca66198efab Spain (ES)
65bed92b-23c0-4148-91de-5bc446ea462d France (FR)
b979a39e-9ee7-4224-bd11-35e168e73f07 Hungary (HU)
5c6c4710-9f29-4378-9995-e681bfa76790 Germany (DE)
562f7abc-c4ec-423e-b936-89762b629736 Czech Republic (CZ)
Ordering
Order Code US and CanadaXT2NE4080BFF000XXX
EAN8015644009441
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width120 mm
Product Net Height130 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Height208 mm
Package Level 1 Depth / Length145 mm
Package Level 1 Gross Weight2.108 kg
Package Level 1 EAN8015644009441
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 32.5..100 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 5.8 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)80 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)400…800 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)160 A
Recommended Screw DriverMain Circuit M6
ReleaseTMA
Release TypeTM
RoHS DateNA
Setting Range56...80 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT2
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque6 N·m
VersionF
CAD Dimensional Drawing1SDH002230A1002
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5901
GL Certificate1SDL000163R0093
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000721R0100
Mechanical Drawings1SDH000721R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000721R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
