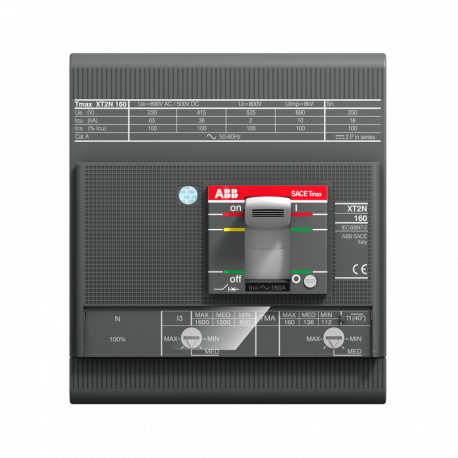

ABB 1SDA067037R1 1SDA067037R1 ABB XT2N 160 TMA 63-630 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA067037R1 ABB XT2N 160 TMA 63-630 4p F F

1SDA067037R1

067037

ABB

1 Pcs.

XT2N 160 TMA 63-630 4p F F XT2N160 TMA R63 Im630 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 55.70 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2348
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108469A1856
9AKK108468A1891
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP01957bb2-d604-48b2-a2e1-50857b7b64fb Italy (IT)
Simplified SCIP6cf4007d-7377-4620-bf71-bb2ebfb8139e Spain (ES)
b97116df-e458-4bba-abf2-6ef281595902 Hungary (HU)
ed4e22aa-68ca-4777-b4a3-9a7707e660a7 Belgium (BE)
2ee5ac5d-2089-489a-bc81-a27283b6a9f5 France (FR)
2059c5b2-4ac5-457f-bbfd-e7a64624a00e Germany (DE)
9113dc5a-7d1b-4ba0-b42f-5c3aad75a719 Czech Republic (CZ)
60c32cd6-3bb5-499c-a2ff-ac53a0e9ee96 Portugal (PT)
7d5e121e-4036-4866-bca5-9669e1b6aa96 Denmark (DK)
19a3b1f0-c617-477e-a82a-b06c5a5ada60 Germany (DE)
339468d7-c350-48e1-ae79-c8824d81dd69 Sweden (SE)
60d4882a-fb2e-45bd-9a25-c977bf022219 Germany (DE)
fbcb5e15-7f17-4ec8-a643-ad76a192e56e Croatia (HR)
b3344b4b-dd95-4b8f-ac56-bc55a64e7145 France (FR)
e79caf94-a678-44d2-b167-ccd62089f529 Greece (GR)
cbdaf91b-fc37-4d44-bc24-1b84f8b98589 Estonia (EE)
0e163568-64b1-45c3-ab3c-8a1bf267d2c0 Belgium (BE)
02103868-adaa-4982-9bb7-910cc86142d1 Finland (FI)
dde684a3-60de-42cd-8fe1-f519a19f95e3 Poland (PL)
a97f8077-2b79-41ef-aacf-546fa724843b Hungary (HU)
5c0bf06a-3071-46b7-9cf6-2e017c00ad8c Sweden (SE)
651ec6b9-af35-42a6-a44f-2e7bf9de6186 Germany (DE)
25ea3b9c-a250-40d0-ab4d-a5ee6f855790 Norway (NO)
7b1d9aba-e4e1-47e1-b92e-6549d454ea1f Netherlands (NL)
033d7a16-0c77-45ae-bcdd-8641cae11075 Poland (PL)
fbc82c32-a5ca-44b9-b720-8beb14dc2c52 Poland (PL)
38cc79c8-82f9-42b9-a19e-983ed2688685 Bulgaria (BG)
c219e422-f6f7-467c-806d-a14a0ad81bed Germany (DE)
Ordering
Order Code US and CanadaXT2NE4063BFF000XXX
EAN8015644009434
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width120 mm
Product Net Height130 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width130 mm
Package Level 1 Height208 mm
Package Level 1 Depth / Length145 mm
Package Level 1 Gross Weight2.114 kg
Package Level 1 EAN8015644009434
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 32.5..100 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 4.85 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)63 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)300…630 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 65 kA
(230 V AC) 65 kA
(240 V AC) 65 kA
(380 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 36 kA
(500 V AC) 30 kA
(525 V AC) 20 kA
(690 V AC) 10 kA
(250 V DC) 2 Poles in Series 36 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)160 A
Recommended Screw DriverMain Circuit M6
ReleaseTMA
Release TypeTM
Setting Range44.1...63 A
Short-Circuit Performance LevelN
StandardsIEC60947-2
Sub-typeXT2
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque6 N·m
VersionF
CAD Dimensional Drawing1SDH002230A1002
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5901
GL Certificate1SDL000163R0093
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000721R0100
Mechanical Drawings1SDH000721R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000721R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
