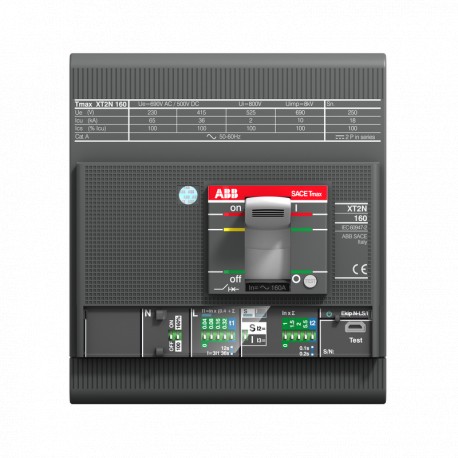

1SDA067092R1 ABB XT2N 160 Ekip LS/I In 63A 4p F F
1SDA067092R1
067092
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA067092R1 ABB XT2N 160 Ekip LS/I In 63A 4p F F functions as a compact molded case circuit breaker designed to safeguard sub-distribution lines and commercial electrical equipment from overloads. Panel builders utilize these electronic trip-unit circuit breakers to achieve precise fault discrimination and reliable system protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2349
- Environmental Product Declaration - EPD: 9AKK108469A1855
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 55.70 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 193cb0e6-e030-42a0-ad2d-ff10b719cda4 Italy
- Simplified SCIP: c90d8063-7978-4ac4-88f7-28f7953bc24b Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT2NE4063EFF000XXX
- E-Number (Finland): 3640569
- E-Number (Norway): 4309749
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2349 |
| Environmental Product Declaration - EPD | 9AKK108469A1855 |
| 9AKK108468A1897 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.70 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 193cb0e6-e030-42a0-ad2d-ff10b719cda4 Italy |
| Simplified SCIP | c90d8063-7978-4ac4-88f7-28f7953bc24b Germany |
| 7060552a-5193-49c5-a4eb-bd31ea418bcb France | |
| 3acd3a53-d943-4cb3-8aba-2b42e0a35b4a Norway | |
| c9d7adc7-4d39-4e20-92c0-6843ebecbc15 Finland | |
| c4f0e55e-0497-4bea-8648-597bd73874dd Netherlands | |
| 3d7aeb4e-e9a4-4f85-82b9-6281e4ef2dd9 Germany | |
| ee0b8aa6-1b80-4f33-86c3-53816476204e Denmark | |
| 837b54d8-b995-4af0-bfee-5d1fdb20dec8 Germany | |
| 5466991d-c095-4ff0-8d2d-3e5fa9f971c6 Croatia | |
| 538c4ddb-0205-428a-b1f0-08c89ee475e2 Czech Republic | |
| 0f6484f3-a618-4725-a607-537e7c4ad4f2 Poland | |
| 1d576ec6-dc7b-4e98-8b23-acf26cc56c63 Netherlands | |
| b1150a44-2c56-4354-95e2-2db72ba1b807 Netherlands | |
| ce9307a7-ac51-41db-8024-5d718dfb319e Estonia | |
| 7006e41b-9eda-48f5-a7d9-e77aa3302545 Greece | |
| a26b7f79-e22a-44c3-b626-3f994ab84b99 Portugal | |
| 7392be7c-3179-4244-8a38-020c84334b8e Bulgaria | |
| 7219c845-9cea-4d75-b82b-89a10dfe14c3 Sweden | |
| cbd49345-af82-487f-a29a-1f1e45d9fbe2 Poland | |
| 06b7acb9-78a5-4b38-ad24-cbbe13f0af2a Sweden | |
| 3f9a273a-07a8-4d72-9d15-938c92f03c56 Germany | |
| 148335a3-3988-47c4-8b46-b46b91c8db35 Germany | |
| 39f587b0-d8c7-4290-b3a7-58d6400c16a3 France | |
| b8224106-ddd6-4fdc-9203-88263002ac81 Netherlands | |
| b32d6fac-56d5-42b3-a3ac-56a89b8c98cb Spain | |
| 707db0e9-bf34-4014-b222-ace60ac70a0f Netherlands | |
| efc93761-fea3-4c4a-b1ad-cbcf4e281f01 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT2NE4063EFF000XXX |
| E-Number (Finland) | 3640569 |
| E-Number (Norway) | 4309749 |
| E-Number (Sweden) | 3182033 |
| EAN | 8015644009977 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 120 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.6 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Height | 208 mm |
| Package Level 1 Depth / Length | 145 mm |
| Package Level 1 Gross Weight | 2.135 kg |
| Package Level 1 EAN | 8015644009977 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1002 |
| Technical | |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Current Type | AC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 1.7 W |
| Rated Current (In) | 63 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 20 kA | |
| (690 V AC) 10 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | Ekip Dip LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5901 |
| GL Certificate | 1SDL000163R0093 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000721R0100 |
| Mechanical Drawings | 1SDH000721R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000721R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
