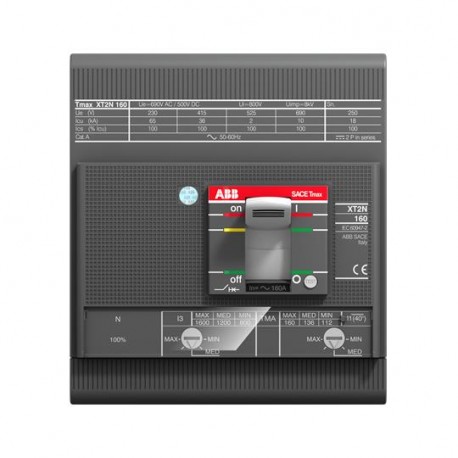

Images are for illustrative purposes only. Please refer to data sheet for details
1SDA067617R1 ABB XT2H 160 TMD 25-300 4p F F
1SDA067617R1
067617
ABB
1 Pcs.
XT2H 160 TMD 25-300 4p F F
XT2H160 TMD R25 Im300 4P F F
Automation > Power circuit-breaker for trafo/generator/installation protection
XT2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An 1SDA067617R1 ABB XT2H 160 TMD 25-300 4p F F molded case circuit breaker protects electrical branch circuits by interrupting current flow when thermal overloads or magnetic short circuits occur.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- EAN:: 8015644015138
- Minimum Order Quantity:: 1 piece
- Customs Tariff Number:: 85362090
- Product Net Width:: 120 mm
- Product Net Height:: 130 mm
- Product Net Depth / Length:: 82.5 mm
- Product Net Weight:: 1.6 kg
- Package Level 1 Units:: 1 piece
- Package Level 1 Width:: 130 mm
- Package Level 1 Height:: 208 mm
- Package Level 1 Depth / Length:: 145 mm
- Package Level 1 Gross Weight:: 1.6 kg
- Package Level 1 EAN:: 8015644015138
- Circuit Breaker Type to be Associated:: Power distribution
- Electrical Durability:: 120 cycles per hour 8000 cycle
- Mechanical Durability:: Nr. Operations 240 cycles per hour Nr. Operations 25000 cycle
More info
▲Ordering
| EAN: | 8015644015138 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
Dimensions
| Product Net Width: | 120 mm |
| Product Net Height: | 130 mm |
| Product Net Depth / Length: | 82.5 mm |
| Product Net Weight: | 1.6 kg |
Container Information
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 130 mm |
| Package Level 1 Height: | 208 mm |
| Package Level 1 Depth / Length: | 145 mm |
| Package Level 1 Gross Weight: | 1.6 kg |
| Package Level 1 EAN: | 8015644015138 |
Additional Information
| Circuit Breaker Type to be Associated: | Power distribution |
| Electrical Durability: | 120 cycles per hour 8000 cycle |
| Mechanical Durability: | Nr. Operations 240 cycles per hour Nr. Operations 25000 cycle |
| Number of Poles: | 4 |
| Opening Time: | CB with SOR 15 ms CB with UVR 15 ms |
| Product Main Type: | SACE Tmax XT |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | CB |
| Rated Current (In): | 25 A |
| Rated Frequency (f): | 50 / 60 Hz |
| Rated Voltage (Ur): | 690 V |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii): | 300 A |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 690 V AC 500 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (220 V AC) 100 kA (220 V AC) 100 kA (380 V AC) 70 kA (415 V AC) 70 kA (440 V AC) 65 kA (500 V AC) 50 kA (690 V AC) 15 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (220 V AC) 100 kA (230 V AC) 100 kA (380 V AC) 70 kA (415 V AC) 70 kA (440 V AC) 65 kA (500 V AC) 50 kA (690 V AC) 15 kA (250 V DC) 2 Poles in Series 70 kA (500 V DC) 3 Poles in Series 70 kA |
| Rated Uninterrupted Current (Iu): | 160 A |
| Release Type: | TM |
| Setting Range: | 17,5...25 A |
| Standards: | IEC |
| Sub-type: | XT2 |
| Terminal Connection Type: | Fixed Circuit-Breakers Front |
| Version: | F |
Certificates and Declarations (Document Number)
| Data Sheet, Technical Information: | 1SDC210033D0204 |
| Declaration of Conformity - CE: | 9AKK106713A5901 |
| Environmental Information: | 1SDL000190R0001 |
| GL Certificate: | 1SDL000163R0093 |
| Instructions and Manuals: | 1SDH000721R0001 |
| LR Certificate: | 1SDL000163R0100 |
Classifications
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 7: | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code: | Q |
| UNSPSC: | 39120000 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
