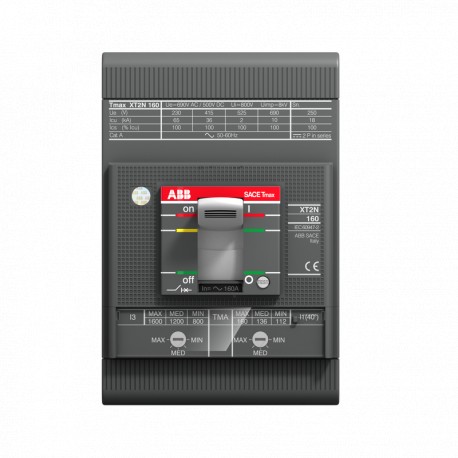

ABB 1SDA067596R1 1SDA067596R1 ABB XT2H 160 TMD 25-300 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA067596R1 ABB XT2H 160 TMD 25-300 3p F F

1SDA067596R1

067596

ABB

1 Pcs.

XT2H 160 TMD 25-300 3p F F XT2H160 TMD R25 Im300 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2348
Environmental Product Declaration - EPD9AKK108469A1856
9AKK108468A1891
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 55.70 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPcfc84dde-e61a-4e38-b07f-5da4036ea9a4 Italy
Simplified SCIP60f3a5ce-a473-4456-911e-ac0a2deb4152 Germany
1b2e7963-dfa1-45d9-8b2a-1b6c5172378c Norway
588d33f0-5dfd-4182-b24c-36b94e148703 Finland
0e17691f-b006-45f2-be24-b655b0b8b097 Netherlands
b63bc7d2-c6c0-49d3-8715-65f45ea937b8 Germany
8c45bec7-2fcc-414a-bdd3-dcde1acdd39e Denmark
943b1b2a-c881-4828-ae9a-22285d4da212 Netherlands
ec4c3592-cc19-486b-8a7e-361979719560 Netherlands
2b42ea61-971f-4447-815c-868e808a63ba Estonia
a64fd534-cdf4-4cbd-90c7-a143c153246b Greece
3c0b8a52-0cae-4561-a3a3-7d51b13a9475 Portugal
e5352635-40ab-4bf9-a257-998d8f2d269e Germany
7386e9a4-136b-42a6-be67-482534d5c84b Croatia
3d07411e-b413-40da-9418-b392c93f18ed Czech Republic
371c7095-86b9-4941-b118-3f9133d596ff Poland
0ff16924-d336-4759-a47e-afc804c32099 Germany
76299180-5c14-4f42-b82b-73c785ad9452 Germany
ef2cfb62-d9aa-4d30-92d2-589ab8a12a7e France
e8206767-1d0c-483e-96b0-8a65ccf203ea Netherlands
e1342d0e-8629-4bca-bd3d-0380a997960c Spain
3044fef1-e5d7-4162-b7bf-6a52a29f8b38 Netherlands
3f0c10fe-2ed4-4969-86dc-272c9282ea75 Bulgaria
d742ac5a-846e-4722-9020-c02906324ba3 Sweden
fc541581-da0a-4833-877d-70aee274cfc8 Poland
64835302-4bcd-4d88-8e7a-cf1fc265821c France
355b4542-96dd-4173-b98c-0dfdd78d83d4 Sweden
bcda9fcf-6239-4554-b97a-c77ffb6efa4d Poland
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT2HE3025AFF000XXX
E-Number (Finland)3638600
E-Number (Norway)4379293
EAN8015644014926
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width90 mm
Product Net Height130 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.1 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width131 mm
Package Level 1 Height212 mm
Package Level 1 Depth / Length147 mm
Package Level 1 Gross Weight1.2 kg
Package Level 1 EAN8015644014926
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH002230A1001
Technical
Connecting Capacity Main CircuitBusbar 32.5..100 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles3P
Opening TimeCB with SOR 30 ms
CB with UVR 30 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 2 W
Rated Current (In)25 A
Rated Frequency (f)50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)300 A
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 3 Poles in Series 70 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(240 V AC) 100 kA
(380 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(525 V AC) 30 kA
(690 V AC) 15 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 3 Poles in Series 70 kA
Rated Uninterrupted Current (Iu)160 A
Rated Voltage (Ur)690 V
Recommended Screw DriverMain Circuit M6
ReleaseTMD
Release TypeTM
Setting Range17.5...25 A
Short-Circuit Performance LevelH
StandardsIEC60947-2
Sub-typeXT2
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque6 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5901
GL Certificate1SDL000163R0093
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000721R0100
Mechanical Drawings1SDH000721R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000721R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
