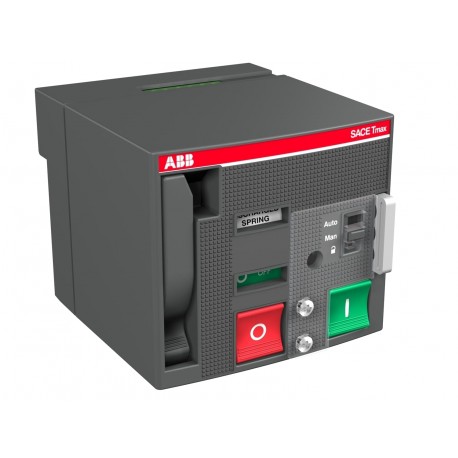

1SDA066473R1 ABB MOE-E CONTROL ENGINE ELECT. 380-440VAC
1SDA066473R1
066473
ABB
1 Pcs.
Automation > Motor operator for power circuit-breaker
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SDA066473R1 is an electronic control engine motor operator used to drive molded case circuit breakers automatically. Such control engines enable precise remote management of electrical distribution lines within complex industrial architectures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXTCEMOEE380-440
- EAN: 8015644692889
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.16 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 94 mm
- Package Level 1 Height: 106 mm
- Package Level 1 Depth / Length: 149 mm
- Package Level 1 Gross Weight: 1.21 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXTCEMOEE380-440 |
| EAN | 8015644692889 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.16 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 94 mm |
| Package Level 1 Height | 106 mm |
| Package Level 1 Depth / Length | 149 mm |
| Package Level 1 Gross Weight | 1.21 kg |
| Package Level 1 EAN | 8015644692889 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Voltage (Ur) | 380 ... 440 V AC |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT2, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0601 |
| Classifications | |
| ETIM 7 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 8 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| IDEA Granular Category Code (IGCC) | 4872 >> Motor operator for power circuit-breaker |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
