View larger
Images are for illustrative purposes only. Please refer to data sheet for details

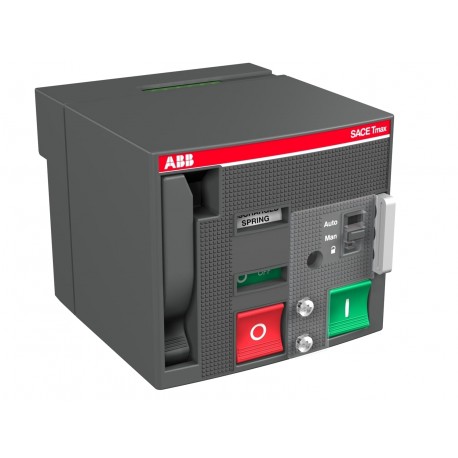

1SDA066472R1 ABB MOE-E CONTROL ENGINE ELECT. 220-250VAC/DC
1SDA066472R1
066472
ABB
1 Pcs.
MOE-E CONTROL ENGINE ELECT. 220-250VAC/DC
MOE-E MOTOR CONTROL ELECT. 220-250VAC/DC
MOE-E XT2-XT4 220..250V ac/dc X REM.CONT
Automation > Motor operator for power circuit-breaker
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXTCEMOEE220-250 |
| E-Number (Finland) | 3638731 |
| EAN | 8015644003784 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.372 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 94 mm |
| Package Level 1 Height | 106 mm |
| Package Level 1 Depth / Length | 149 mm |
| Package Level 1 Gross Weight | 1.444 kg |
| Package Level 1 EAN | 8015644003784 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Voltage (Ur) | 220 ... 250 V AC |
| 220 ... 250 V DC | |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT2, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0601 |
| Classifications | |
| ETIM 7 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 8 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| IDEA Granular Category Code (IGCC) | 4872 >> Motor operator for power circuit-breaker |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
