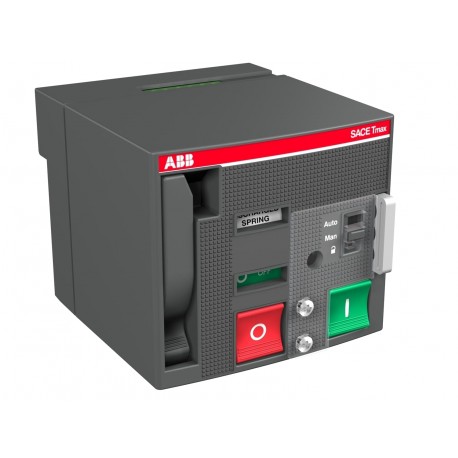

ABB 1SDA066470R1 1SDA066470R1 ABB MOE-E CONTROL ENGINE ELECT. 48-60VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA066470R1 ABB MOE-E CONTROL ENGINE ELECT. 48-60VDC

1SDA066470R1

066470

ABB

1 Pcs.

MOE-E CONTROL ENGINE ELECT. 48-60VDC MOE-E MOTOR CONTROL ELECT. 48-60VDC MOE-E XT2-XT4 48...60V dc X REM.CONTR.

Automation > Motor operator for power circuit-breaker
Molded Case Circuit Breakers ≤ 250 A Xtmax

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB MOE-E CONTROL ENGINE ELECT. 48-60VDC functions as the electronic control module for motorized breaker operators, ensuring precise command execution in automated systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Order Code US and Canada: KXTCEMOEE48-60
  • EAN: 8015644003760
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1.16 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 94 mm
  • Package Level 1 Height: 106 mm
  • Package Level 1 Depth / Length: 149 mm
  • Package Level 1 Gross Weight: 1.21 kg

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
Order Code US and CanadaKXTCEMOEE48-60
EAN8015644003760
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1.16 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width94 mm
Package Level 1 Height106 mm
Package Level 1 Depth / Length149 mm
Package Level 1 Gross Weight1.21 kg
Package Level 1 EAN8015644003760
Additional Information
Configuration TypeLoose or configurable
Current TypeDC
Order Multiple1 piece
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Rated Voltage (Ur)48 ... 60 V DC
StandardsIEC60947-2
UL489
Suitable ForXT2, XT4
Suitable for Product ClassSACE Tmax XT
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0205
1SDC210099D0205
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000721R0601
Classifications
ETIM 7EC001030 - Motor operator for power circuit-breaker
ETIM 8EC001030 - Motor operator for power circuit-breaker
ETIM 9EC001030 - Motor operator for power circuit-breaker
IDEA Granular Category Code (IGCC)4872 >> Motor operator for power circuit-breaker
Object Classification CodeQ
UNSPSC39121601
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370412
