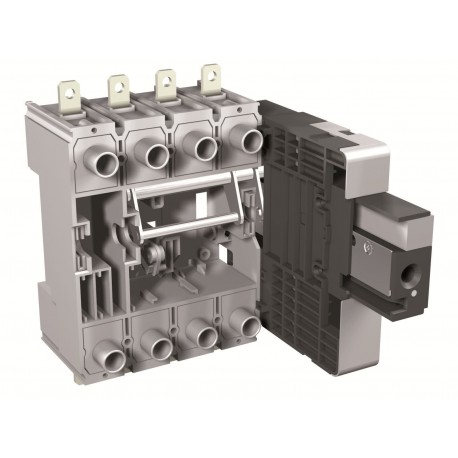

ABB 1SDA068203R1 1SDA068203R1 ABB XT2 W FP 4p HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA068203R1 ABB XT2 W FP 4p HR

1SDA068203R1

068203

ABB

1 Pcs.

XT2 W FP 4p HR 4P TERM REMOVABLE BASE. HR W FP-XT2

Automation > Chassis part power circuit breaker
XT2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 1SDA068203R1 ABB XT2 W FP 4p HR acts as a fixed socket base for molded case circuit breakers, providing structured terminal support and connection points in electrical switchboards. These mounting bases enable straightforward device replacement and isolation in four-pole distribution systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Order Code US and Canada: KXT2EWFPHR-4
  • E-Number (Finland): 3640816
  • EAN: 8015644696320
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1.7 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 195 mm
  • Package Level 1 Height: 220 mm
  • Package Level 1 Depth / Length: 260 mm

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
Order Code US and CanadaKXT2EWFPHR-4
E-Number (Finland)3640816
EAN8015644696320
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1.7 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width195 mm
Package Level 1 Height220 mm
Package Level 1 Depth / Length260 mm
Package Level 1 Gross Weight1.85 kg
Package Level 1 EAN8015644696320
Additional Information
Configuration TypeLoose or configurable
Number of Poles4
Order Multiple1 piece
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeFixed Part
Rated Frequency (f)50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Uninterrupted Current (Iu)160 A
StandardsIEC60947-2
Sub-typeXT2
Suitable ForXT2
Suitable for Product ClassSACE Tmax XT
Terminal Connection TypeWithdrawable Circuit-Breakers
Rear flat Horizontal
VersionW
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000721R0005
Classifications
ETIM 7EC002043 - Chassis part power circuit breaker
ETIM 8EC002043 - Chassis part power circuit breaker
ETIM 9EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
Object Classification CodeQ
UNSPSC39122221
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370422
