ABB 1SDA068202R1 1SDA068202R1 ABB XT2 W FP 4p EF View larger
Images are for illustrative purposes only. Please refer to data sheet for details

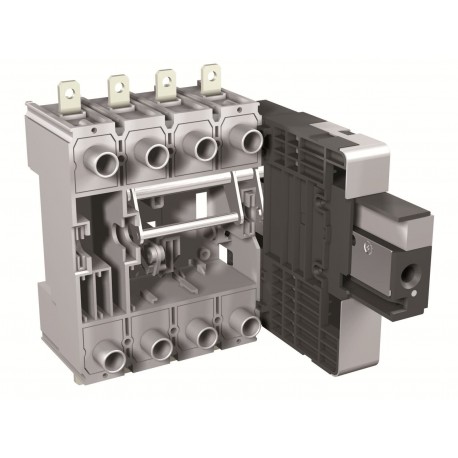

1SDA068202R1 ABB XT2 W FP 4p EF

1SDA068202R1

068202

ABB

1 Pcs.

XT2 W FP 4p EF 4P TERM REMOVABLE BASE. EF W FP-XT2

Automation > Chassis part power circuit breaker
XT2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SDA068202R1 functions as a withdrawable fixed part chassis base intended for mounting multi-pole circuit protection units securely in power distribution panels. Such chassis assemblies allow operators to safely insert or extract breakers without exposing live terminals.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • SCIP: 7fe784b0-a8cb-435f-8a9a-0932e5805080 Italy (IT)
  • Simplified SCIP: 9bc8adb0-73b3-4476-a6d6-efc57daa0152 Germany (DE)
  • Order Code US and Canada: KXT2WFPEF-4
  • E-Number (Finland): 3640813
  • EAN: 8015644020989
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 1.59 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 175 mm

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP7fe784b0-a8cb-435f-8a9a-0932e5805080 Italy (IT)
Simplified SCIP9bc8adb0-73b3-4476-a6d6-efc57daa0152 Germany (DE)
e48e79ca-923f-4d90-942c-62b834759451 Netherlands (NL)
e7cec8e3-91d1-4618-8bb5-9923baaeb773 Germany (DE)
fec577d9-3f77-42ca-bad9-b91ce238bf26 Denmark (DK)
556eb20e-d48a-49f7-b75f-d73b43ceead4 Croatia (HR)
55e41900-813b-44c8-9fbc-fc9ea2d5cc50 Czech Republic (CZ)
01a809c6-5876-4389-ade8-4d1e8d16c567 Poland (PL)
1fb72194-1252-4c26-a610-362a5c11dfee Netherlands (NL)
79fadfd9-a615-4a90-aced-2b23de49aa28 Netherlands (NL)
453403d6-38ba-47c1-9ec1-6dc43960650a Estonia (EE)
1b7cc6a3-d54a-438d-ada1-61bce79b87a5 Greece (GR)
6cbda5f2-7bc8-4d88-81b8-f0cdcbaf7ce5 Portugal (PT)
ef2d5586-8d83-4086-aa05-0b51029e14d0 Bulgaria (BG)
effad5cf-117e-4a20-84c3-972aeb9d4ebe Sweden (SE)
0177eb8f-d28a-4649-a05b-f5d41ad40e60 Poland (PL)
a09e322e-7a99-40e6-9ef8-a597b255fae4 France (FR)
0684c22f-6ec8-48b5-8bac-2d925918cac6 Germany (DE)
d900eb8b-d2fc-4d35-b272-679ec218cfa7 Sweden (SE)
0e52a323-09e7-4932-a456-dde5e5a88547 Germany (DE)
f023aaaf-be83-4fad-93de-417c1e9b749f Germany (DE)
6ac5fb91-296d-4bbc-b474-9f2867a35d68 France (FR)
682777f4-9e26-488b-89a4-83dc624a28a7 Netherlands (NL)
8e289022-7954-4316-bf54-e0f69c44e58b Spain (ES)
0021d8f7-85d8-4452-829b-e030e0e11edd Netherlands (NL)
3cafa4af-839a-4860-af9b-c7044b0b5652 Poland (PL)
bcc29c47-1aaf-47eb-9b68-2f3dd5433d41 Norway (NO)
9783cdfd-48ba-4ca9-8e6d-6799bb3a8f4e Finland (FI)
Ordering
Order Code US and CanadaKXT2WFPEF-4
E-Number (Finland)3640813
EAN8015644020989
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight1.59 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width175 mm
Package Level 1 Height225 mm
Package Level 1 Depth / Length195 mm
Package Level 1 Gross Weight1.74 kg
Package Level 1 EAN8015644020989
Additional Information
Configuration TypeLoose or configurable
Number of Poles4
Order Multiple1 piece
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeFixed Part
Rated Frequency (f)50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Uninterrupted Current (Iu)160 A
StandardsIEC60947-2
UL489
Sub-typeXT2
Suitable ForXT2
Suitable for Product ClassSACE Tmax XT
Terminal Connection TypeWithdrawable Circuit-Breakers
Front Extended
VersionW
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000721R0005
Classifications
ETIM 7EC002043 - Chassis part power circuit breaker
ETIM 8EC002043 - Chassis part power circuit breaker
ETIM 9EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
Object Classification CodeQ
UNSPSC39122221
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370422

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
