View larger
Images are for illustrative purposes only. Please refer to data sheet for details

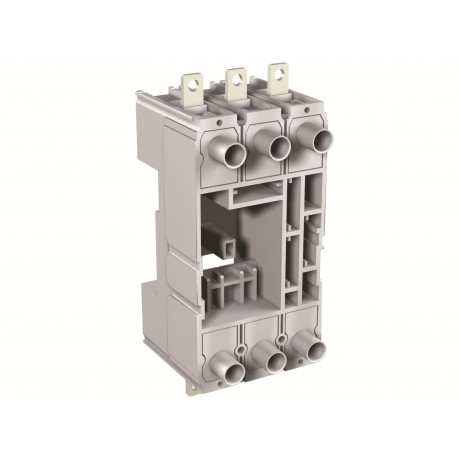

1SDA068190R1 ABB XT2 P FP 4p EF
1SDA068190R1
068190
ABB
1 Pcs.
XT2 P FP 4p EF
4P THERMAL PLUG-IN BASE. EF P FP-XT2
Automation > Chassis part power circuit breaker
XT2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108469A8954 |
| 9AKK108471A0811 | |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3849f62b-d95b-47c0-8646-27db787d98fd Italy |
| Simplified SCIP | 5913ba0e-abfd-4a95-8536-ad30a2022d60 Germany |
| e18b2bff-5d04-457e-bd65-d8416e1003f3 Poland | |
| 7940de7d-1c5f-4d47-a32a-c7c6a972ee82 Bulgaria | |
| ab0686a8-f5b0-4997-8dac-b68de75a087f Sweden | |
| 388e8f4b-b7cd-4c52-aa68-ef6117b772b6 France | |
| ee25ecbb-9a5d-47fd-9a0a-355714763eb0 Germany | |
| b0279a69-25c7-4a10-812f-c2745ab6dd7b Sweden | |
| 60d86c17-3704-4bc2-89f3-4c8f624b7e9e Germany | |
| 587250e1-3ef1-4667-bf7e-f6b9b9c5e884 Germany | |
| dc412e8f-b103-452b-aa97-3e05e9a255fe France | |
| eb353971-9c08-4d36-b0ad-ee7dc11d8517 Netherlands | |
| d8776e61-fed9-48d3-ad9c-894d41ffa5c2 Spain | |
| 8b2aa740-0ff2-437a-95fb-53826a027a61 Netherlands | |
| feb13c05-0e5e-4c16-a382-78824cc9daed Poland | |
| 404c5a4d-1758-43de-a136-2ef7babe9424 Norway | |
| 2944566a-0f6d-4253-bd89-8c52798feac0 Finland | |
| d603785f-7b2e-4e35-9a5a-b8ee548296f3 Netherlands | |
| 391ec91c-de5f-43b3-95c5-7ba82c4caf5d Germany | |
| fbca603b-a1a3-47c9-b84d-db516531e78e Denmark | |
| e0e37306-9a95-4bd5-a283-cf7419f8e900 Croatia | |
| 7f86230d-5e09-492d-8aa0-aef6476fa242 Czech Republic | |
| c0bf3630-b410-46ba-8e35-e952b9f199fe Poland | |
| 2fc58db1-6f70-4bd5-8550-3cd797cff9a8 Netherlands | |
| bb07e917-5864-4519-9339-e0d2d5d2ac29 Netherlands | |
| ec701bae-2b61-4cad-9e83-a4e47fa281e0 Estonia | |
| 39e9501d-b0ae-4f0e-9ccf-7a0e42aa5899 Greece | |
| 49cbc938-9d1f-4d51-b28d-06ea0cf18b72 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXT2PFPEF-4 |
| E-Number (Finland) | 3640553 |
| E-Number (Norway) | 4384901 |
| E-Number (Sweden) | 3182039 |
| EAN | 8015644020866 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.12 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 180 mm |
| Package Level 1 Depth / Length | 225 mm |
| Package Level 1 Gross Weight | 1.22 kg |
| Package Level 1 EAN | 8015644020866 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Suitable For | XT2 |
| Suitable for Product Class | SACE Tmax XT |
| Version | P |
| Technical | |
| Configuration Type | Loose or configurable |
| Number of Poles | 4P |
| Order Multiple | 1 piece |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Standards | IEC60947-2 |
| UL489 | |
| Sub-type | XT2 |
| Terminal Connection Type | Plug-In Circuit-Breakers |
| Front Extended | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0005 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
