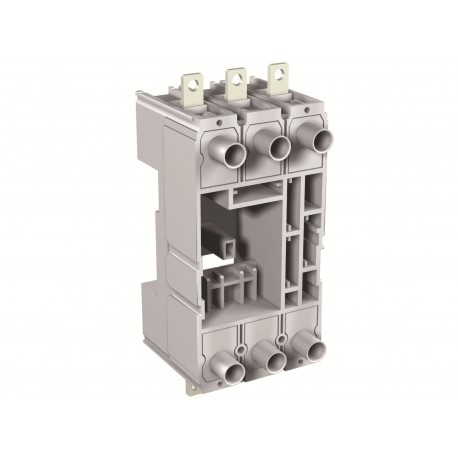

1SDA068187R1 ABB XT2 P FP 3p EF

1SDA068187R1

068187

ABB

1 Pcs.

XT2 P FP 3p EF 3P THERMAL PLUG-IN BASE. EF P FP-XT2

Automation > Chassis part power circuit breaker
XT2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB XT2 P FP 3p EF is a fixed part for circuit breakers designed to provide secure terminal connections and structural support in electrical distribution panels. Components of this type allow circuit breakers to be easily installed, maintained, or replaced within switchgear assemblies without rewiring main power paths. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 9AKK108469A8954
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • SCIP: 4008983c-28ea-439b-b583-a7f13da6d0c5 Italy
  • Simplified SCIP: 3ced2f13-8cd3-440d-9951-98bc34ef1cd3 Germany
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXT2PFPEF-3
  • E-Number (Finland): 3640552
  • E-Number (Norway): 4384900
  • E-Number (Sweden): 3182031
  • EAN: 8015644020842
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108469A8954
9AKK108471A0811
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP4008983c-28ea-439b-b583-a7f13da6d0c5 Italy
Simplified SCIP3ced2f13-8cd3-440d-9951-98bc34ef1cd3 Germany
0a155f53-e5bf-408a-88c3-367721cebd99 Finland
9d90a7d9-d567-47c5-8144-3ec0453258ef Netherlands
372906d2-8268-402d-a692-e150a831fc73 Germany
63171e24-cd03-47ba-a5d8-b0286af8fe7f Denmark
a0ecb39b-bc85-4c6a-bedc-fc99d1d93e58 Croatia
2dc4d118-1937-4582-8483-c36b7aa1fc92 Czech Republic
bd506a3a-44b6-4ad4-aa90-3b34f328d083 Poland
f0b50ce2-a53c-4f12-b273-6bea75082c61 Netherlands
3406e9dd-472d-4432-b095-d36f46534164 Netherlands
9389d90e-35a2-48a9-b343-72096a67ccc9 Estonia
2cc85a05-f2b5-4acd-a38d-4bf3b4c93303 Greece
148dc9c1-1170-4ad9-ae5e-df808f73d153 Portugal
54744751-8c3d-49e4-a4b1-609eab9950cb Bulgaria
76dcb408-06ce-4b4e-8ab7-5ac6b9e3d7ce Sweden
9bea0db1-86e8-466a-b393-45d0f7699708 Poland
4766349e-7884-47f8-a6cf-32eaa6c0de09 France
0ea65c17-c0e0-4a93-bf2a-998aba52c6e2 Germany
4dfec1e1-6a24-4d59-a9f3-900ea503055d Sweden
e5271b2c-24ac-488b-aa8a-7ae0007ef330 Germany
61476118-69fc-42c8-a542-05f9fa212054 Germany
c96264f3-564f-491f-bae5-c5864962b753 France
e660c98b-07b5-4d7d-b5a2-adb2a52a7154 Netherlands
d7724682-7a41-46c1-b938-5058863dac34 Spain
5516909f-4173-4a7a-ae8a-883f806678b1 Netherlands
daf1865e-3260-4947-ac23-14526f87c62a Poland
9fe62ffe-6463-4d76-bc1f-34dbda23384d Norway
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXT2PFPEF-3
E-Number (Finland)3640552
E-Number (Norway)4384900
E-Number (Sweden)3182031
EAN8015644020842
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight0.9 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width120 mm
Package Level 1 Height180 mm
Package Level 1 Depth / Length225 mm
Package Level 1 Gross Weight1 kg
Package Level 1 EAN8015644020842
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeFixed Part
Suitable ForXT2
Suitable for Product ClassSACE Tmax XT
VersionP
Technical
Configuration TypeLoose or configurable
Number of Poles3P
Order Multiple1 piece
Rated Frequency (f)50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
500 V DC
Rated Uninterrupted Current (Iu)160 A
StandardsIEC60947-2
UL489
Sub-typeXT2
Terminal Connection TypePlug-In Circuit-Breakers
Front Extended
Certificates and Declarations
Data Sheet, Technical Information2CDC210017C0101
1SDC210100D0206
1SXF210033C2001
1SDC210099D0206
1SXF210034C2001
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Wiring Diagram
Instructions and Manuals1SDH000721R0005
External Classifications and Standards
ETIM 9EC002043 - Chassis part power circuit breaker
ETIM 10EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
Object Classification CodeQ
UNSPSC39122221
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370422

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
