View larger

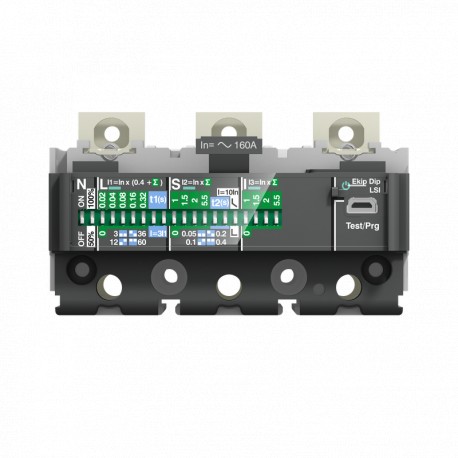

Images are for illustrative purposes only. Please refer to data sheet for details
1SDA067353R1 ABB Rele Ekip M-LIU In63 3P XT2
1SDA067353R1
067353
ABB
1 Pcs.
Rele Ekip M-LIU In63 3P - XT2
RELAY ELECT. Ekip M-LIU In63 3P - XT2
Ekip M Dip LIU In=63A XT2 3p
Automation > Shunt release (for power circuit breaker)
Molded Case Circuit Breakers ≤ 250 A Xtmax
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3640895 |
| E-Number (Norway) | 4379557 |
| EAN | 8015644012502 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 8015644012502 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Motor Protection |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT2 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Number of Poles | 3P |
| Order Multiple | 1 piece |
| Rated Current (In) | 63 A |
| Release | Ekip M Dip LIU |
| Release Type | EL |
| Standards | IEC60947-2 |
| Certificates and Declarations | |
| Data Sheet, Technical Information | SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0507 |
| 1SDH000721R0505 | |
| External Classifications and Standards | |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 10 | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
