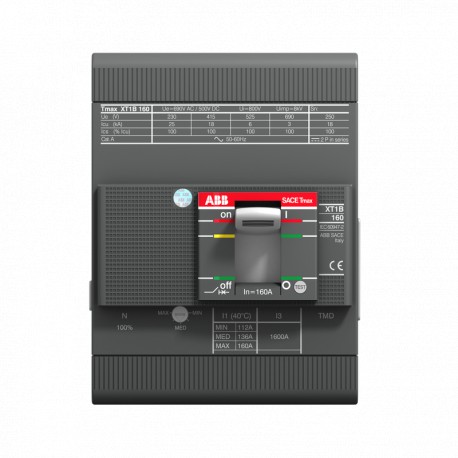

ABB 1SDA067442R1 1SDA067442R1 ABB XT1S 160 TMD 100-1000 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA067442R1 ABB XT1S 160 TMD 100-1000 4p F F

1SDA067442R1

067442

ABB

1 Pcs.

XT1S 160 TMD 100-1000 4p F F XT1S160 TMD R100 Im1000 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2347
Environmental Product Declaration - EPD9AKK108468A1890
9AKK108468A7793
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 55.9 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPe8703c7c-6812-4be1-aeb2-6bff832bb09f Italy
Simplified SCIP4e9acd67-d223-4094-b9f5-2ebf71cb410f Germany
fd39c242-86e6-416e-b9c0-e7c52df5fb64 France
93c3ca25-5552-4eb6-a923-ff9437ec1af6 Poland
7eb66e3c-1557-4977-b204-6e3ca4ec29a7 Norway
ca380bb1-2434-45d8-940b-04eb67127210 Finland
a803e76c-97e0-4c9a-8c96-b332b920d2cd Netherlands
c914d93c-f6fd-46ef-b8da-67d5736a3223 Germany
086c3b68-4d79-4880-a044-a5c9ef5c87c7 Denmark
5ff52182-00bd-4ef2-a786-58b69ea31750 Germany
87d9040b-7ce5-453c-ab3f-b93321188984 Croatia
7a13ad3e-8aa9-4c14-bb72-acca1120f26b Czech Republic
ad8d8a9c-03e8-46f4-9b86-3d3c741a5eff Poland
cc715317-d23b-4c79-b9ec-5e7ddd91a699 Netherlands
db95924e-f3f2-4a14-9d80-1da6e07a8ae8 Netherlands
cf473a32-c0f8-4491-bf62-34fcb2a7e19b Estonia
920632a6-dc52-49b5-b34d-c140ce0dba19 Greece
54507a39-7694-43e5-88e7-7d1cdd999ea9 Portugal
e8b460aa-4cda-439a-89ec-39552b61017e Sweden
7fc81dc4-7aef-4ec6-823a-4ac15025f2d0 Germany
b71b96b4-2243-4ed9-a56c-2a7861a83a84 Germany
3d9da6a6-399e-4b89-a85f-1e56b93af4f5 France
c5ac8b84-3212-49e7-b80a-5bf9a9c59b21 Netherlands
fd39c242-86e6-416e-b9c0-e7c52df5fb64 France
e8b460aa-4cda-439a-89ec-39552b61017e Sweden
7fc81dc4-7aef-4ec6-823a-4ac15025f2d0 Germany
b71b96b4-2243-4ed9-a56c-2a7861a83a84 Germany
3d9da6a6-399e-4b89-a85f-1e56b93af4f5 France
c5ac8b84-3212-49e7-b80a-5bf9a9c59b21 Netherlands
95856155-be17-4867-b3c6-083b946bad7c Spain
93c3ca25-5552-4eb6-a923-ff9437ec1af6 Poland
7eb66e3c-1557-4977-b204-6e3ca4ec29a7 Norway
ca380bb1-2434-45d8-940b-04eb67127210 Finland
a803e76c-97e0-4c9a-8c96-b332b920d2cd Netherlands
c914d93c-f6fd-46ef-b8da-67d5736a3223 Germany
086c3b68-4d79-4880-a044-a5c9ef5c87c7 Denmark
5ff52182-00bd-4ef2-a786-58b69ea31750 Germany
87d9040b-7ce5-453c-ab3f-b93321188984 Croatia
7a13ad3e-8aa9-4c14-bb72-acca1120f26b Czech Republic
ad8d8a9c-03e8-46f4-9b86-3d3c741a5eff Poland
cc715317-d23b-4c79-b9ec-5e7ddd91a699 Netherlands
db95924e-f3f2-4a14-9d80-1da6e07a8ae8 Netherlands
cf473a32-c0f8-4491-bf62-34fcb2a7e19b Estonia
920632a6-dc52-49b5-b34d-c140ce0dba19 Greece
95856155-be17-4867-b3c6-083b946bad7c Spain
78e794d4-b55d-4fbd-964e-cb0ee32e0e21 Netherlands
e810a25b-9a9f-4c1f-9e19-b134b4b131e1 Bulgaria
5a0dad15-d1b8-45fd-9bfd-e9752482d4f7 Sweden
78e794d4-b55d-4fbd-964e-cb0ee32e0e21 Netherlands
09dddfd6-a2ab-4eec-bf95-8c7e9e966cae Poland
54507a39-7694-43e5-88e7-7d1cdd999ea9 Portugal
e810a25b-9a9f-4c1f-9e19-b134b4b131e1 Bulgaria
5a0dad15-d1b8-45fd-9bfd-e9752482d4f7 Sweden
09dddfd6-a2ab-4eec-bf95-8c7e9e966cae Poland
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaXT1SE4100AFF000XXX
E-Number (Norway)4309723
EAN8015644013363
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width101.6 mm
Product Net Height130 mm
Product Net Depth / Length70 mm
Product Net Weight1.4 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width128 mm
Package Level 1 Height135 mm
Package Level 1 Depth / Length143 mm
Package Level 1 Gross Weight1.4 kg
Package Level 1 EAN8015644013363
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH001295R0080
Technical
Connecting Capacity Main CircuitBusbar 45.5 ... 80 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4P
Opening TimeCB with SOR 30 ms
CB with UVR 30 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 7 W
Rated Current (In)100 A
Rated Frequency (f)50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)1000 A
Rated Insulation Voltage (Ui)800 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 80 kA
(230 V AC) 80 kA
(240 V AC) 80 kA
(380 V AC) 50 kA
(415 V AC) 37.5 kA
(440 V AC) 25 kA
(500 V AC) 18 kA
(525 V AC) 17.5 kA
(690 V AC) 5 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(240 V AC) 85 kA
(380 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 50 kA
(500 V AC) 36 kA
(525 V AC) 35 kA
(690 V AC) 8 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)160 A
Rated Voltage (Ur)690 V
Recommended Screw DriverMain Circuit M6
ReleaseTMD
Release TypeTM
Setting Range70...100 A
Short-Circuit Performance LevelS
StandardsIEC60947-2
Sub-typeXT1
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque6 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5532
GL Certificate1SDL000163R0103
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000719R0100
Mechanical Drawings1SDH000719R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000719R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
