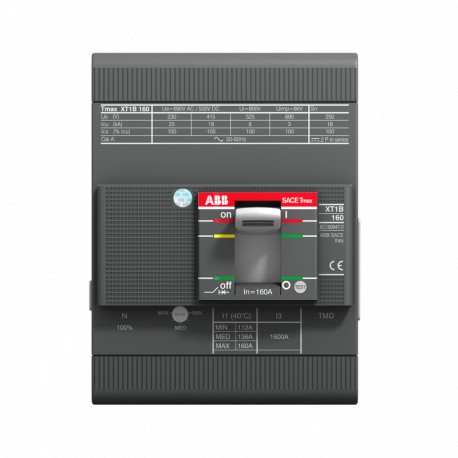

1SDA067423R1 ABB XT1N 160 TMD 80-800 4p F F
1SDA067423R1
067423
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Compact power distribution systems utilize the 1SDA067423R1 ABB XT1N 160 TMD 80-800 4p F F to protect circuits against overloads and short-circuit conditions. Molded case circuit breakers of this category are standard additions to electrical control panels, providing reliable switching and fault interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2347
- Environmental Product Declaration - EPD: 9AKK108468A1890
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 55.9 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 38ea6003-efeb-440b-8258-294c4647d79c Italy
- Simplified SCIP: 98d8e47e-b478-4d8c-ab67-23a70f319ba6 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT1NE4080AFF000XXX
- E-Number (Finland): 3640543
- E-Number (Norway): 4379236
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2347 |
| Environmental Product Declaration - EPD | 9AKK108468A1890 |
| 9AKK108468A7793 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 38ea6003-efeb-440b-8258-294c4647d79c Italy |
| Simplified SCIP | 98d8e47e-b478-4d8c-ab67-23a70f319ba6 Germany |
| 13d4e4b4-a0b7-4b0e-a670-bf1e01e9dc3d Poland | |
| 383e131d-8ac9-464b-891c-edec40806df8 Norway | |
| 4edfba22-9fdd-4b59-8ab8-17d5ad0e1490 Finland | |
| fa2a42d4-3bc2-4227-a0c8-cd97d76849db Netherlands | |
| ed0d7f17-8e19-4ea9-a0c0-ae7a50079494 Germany | |
| d5a17c63-7902-4635-832b-0cb8363bedac Denmark | |
| f0964070-7e0c-4541-9359-2d1975aa9945 Germany | |
| 54f8c0e4-78d5-4efc-bb4a-e7bf97518408 Croatia | |
| 7508a0e6-9533-4ab0-bfe5-bc229327607a Czech Republic | |
| a9f952fd-daf0-4a35-9c2f-b2a31a011ae8 Poland | |
| 18281490-6f95-4f80-a336-0e6b162be180 Netherlands | |
| d308258b-32b9-4087-bf09-6a66e3109ef4 Netherlands | |
| 0a45d19b-4a2a-440f-af7c-53ac264325b3 Estonia | |
| fdd57062-d9fc-4bfd-9079-4a3a96ea94b1 Greece | |
| fb836575-46ef-4da4-9067-d404dc5946bb Portugal | |
| c67644e0-dda8-4107-b8e9-978fdcebea28 Sweden | |
| 11f8b80f-ea71-4297-a53f-4258d5d3b90f Germany | |
| 1259445e-a1fd-4893-9b9f-08f9edc89b4f Germany | |
| 92b4386c-e5ab-444f-95be-43e1758d7166 France | |
| 5e4ea114-26ff-402c-acb5-2e5fc34e10d1 Netherlands | |
| 8cffde16-12dc-4fce-933f-374d54f4fa47 Spain | |
| 6e68ca4c-fe07-4278-bd95-1afbb79714d2 Netherlands | |
| d930dbf9-748d-45b2-a1a8-47f2ccd1c44d Bulgaria | |
| 5934e348-5f4f-4876-8065-3c684e919acd Sweden | |
| 6e68ca4c-fe07-4278-bd95-1afbb79714d2 Netherlands | |
| 3acd809e-c5d0-4f20-91c3-1f3d01b455b4 Poland | |
| f9e3242c-3f43-48ef-8ba4-46b6975a3fdd France | |
| c67644e0-dda8-4107-b8e9-978fdcebea28 Sweden | |
| 11f8b80f-ea71-4297-a53f-4258d5d3b90f Germany | |
| 1259445e-a1fd-4893-9b9f-08f9edc89b4f Germany | |
| 92b4386c-e5ab-444f-95be-43e1758d7166 France | |
| 5e4ea114-26ff-402c-acb5-2e5fc34e10d1 Netherlands | |
| 8cffde16-12dc-4fce-933f-374d54f4fa47 Spain | |
| 13d4e4b4-a0b7-4b0e-a670-bf1e01e9dc3d Poland | |
| 383e131d-8ac9-464b-891c-edec40806df8 Norway | |
| 4edfba22-9fdd-4b59-8ab8-17d5ad0e1490 Finland | |
| fa2a42d4-3bc2-4227-a0c8-cd97d76849db Netherlands | |
| ed0d7f17-8e19-4ea9-a0c0-ae7a50079494 Germany | |
| d5a17c63-7902-4635-832b-0cb8363bedac Denmark | |
| f0964070-7e0c-4541-9359-2d1975aa9945 Germany | |
| 54f8c0e4-78d5-4efc-bb4a-e7bf97518408 Croatia | |
| 7508a0e6-9533-4ab0-bfe5-bc229327607a Czech Republic | |
| a9f952fd-daf0-4a35-9c2f-b2a31a011ae8 Poland | |
| 18281490-6f95-4f80-a336-0e6b162be180 Netherlands | |
| d308258b-32b9-4087-bf09-6a66e3109ef4 Netherlands | |
| 0a45d19b-4a2a-440f-af7c-53ac264325b3 Estonia | |
| fdd57062-d9fc-4bfd-9079-4a3a96ea94b1 Greece | |
| fb836575-46ef-4da4-9067-d404dc5946bb Portugal | |
| d930dbf9-748d-45b2-a1a8-47f2ccd1c44d Bulgaria | |
| 5934e348-5f4f-4876-8065-3c684e919acd Sweden | |
| 3acd809e-c5d0-4f20-91c3-1f3d01b455b4 Poland | |
| f9e3242c-3f43-48ef-8ba4-46b6975a3fdd France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT1NE4080AFF000XXX |
| E-Number (Finland) | 3640543 |
| E-Number (Norway) | 4379236 |
| E-Number (Sweden) | 3182421 |
| EAN | 8015644013172 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 101.6 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm |
| Package Level 1 Height | 135 mm |
| Package Level 1 Depth / Length | 143 mm |
| Package Level 1 Gross Weight | 1.466 kg |
| Package Level 1 EAN | 8015644013172 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0080 |
| Technical | |
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 4.8 W |
| Rated Current (In) | 80 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 800 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 18 kA | |
| (500 V AC) 15 kA | |
| (525 V AC) 11 kA | |
| (690 V AC) 5 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 22 kA | |
| (690 V AC) 6 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 56...80 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| GL Certificate | 1SDL000163R0103 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
