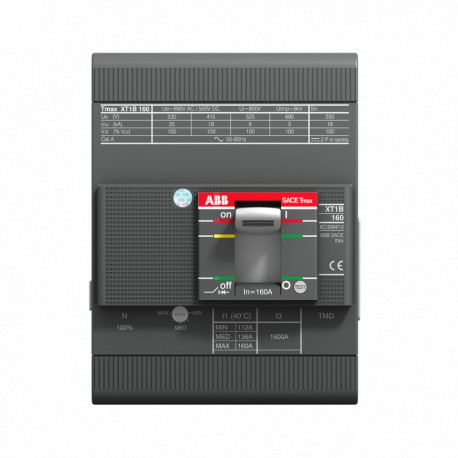

1SDA067421R1 ABB XT1N 160 TMD 50-500 4p F F
1SDA067421R1
067421
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA067421R1 ABB XT1N 160 TMD 50-500 4p F F functions as a dependable circuit breaker designed to interrupt fault currents and protect low-voltage electrical circuits. Panel builders integrate such components into power distribution setups to ensure reliable overload and short-circuit protection. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 55.9 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2347
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108468A1890
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: bc5d6b25-1750-4cd6-b48b-84ea24159c6e Italy (IT)
- Simplified SCIP: 91118788-ee18-4d78-be00-961e5290bc9e Germany (DE)
- Order Code US and Canada: XT1NE4050AFF000XXX
- E-Number (Finland): 3640541
- E-Number (Sweden): 3182419
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2347 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108468A1890 |
| 9AKK108468A7793 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | bc5d6b25-1750-4cd6-b48b-84ea24159c6e Italy (IT) |
| Simplified SCIP | 91118788-ee18-4d78-be00-961e5290bc9e Germany (DE) |
| d65dd2d9-6308-4d86-b0e2-bab827717846 Czech Republic (CZ) | |
| 77697931-db31-4e0c-bc9c-25fa71834994 Poland (PL) | |
| 8d2787cf-521c-4139-b30a-377d1ef10c6a Germany (DE) | |
| 1f0f32ab-0f81-446b-bed5-766ceff550e7 Denmark (DK) | |
| 9f486b83-2ee7-4baf-9e13-226f49760124 Germany (DE) | |
| 435dcc50-318c-45f3-b68d-3c016f436814 Croatia (HR) | |
| 49154b02-e348-440a-90e5-798be1c433be Sweden (SE) | |
| 9d6de0e2-6c33-40b3-827e-e044209a69bb Germany (DE) | |
| a578d5a2-5bd8-4848-a8bf-407d6e194dd3 Germany (DE) | |
| 3f3cbfa1-bdc9-4026-8097-d06c3c5cc718 Poland (PL) | |
| 294ca128-edc5-44c9-bfb1-3d605c127b7a Norway (NO) | |
| a8ca0675-934d-4a22-8305-7b52944d5ecd Finland (FI) | |
| 7c05c9ba-5df1-4dae-b4ae-6ea2ed5421b4 Netherlands (NL) | |
| a8ca0675-934d-4a22-8305-7b52944d5ecd Finland (FI) | |
| 7c05c9ba-5df1-4dae-b4ae-6ea2ed5421b4 Netherlands (NL) | |
| 8d2787cf-521c-4139-b30a-377d1ef10c6a Germany (DE) | |
| 1f0f32ab-0f81-446b-bed5-766ceff550e7 Denmark (DK) | |
| 9f486b83-2ee7-4baf-9e13-226f49760124 Germany (DE) | |
| 435dcc50-318c-45f3-b68d-3c016f436814 Croatia (HR) | |
| d65dd2d9-6308-4d86-b0e2-bab827717846 Czech Republic (CZ) | |
| 77697931-db31-4e0c-bc9c-25fa71834994 Poland (PL) | |
| 99d289b0-31bf-4f24-bc2a-977b892eaf49 Netherlands (NL) | |
| f57ccdcd-280a-4758-a767-b6e7c672c365 Netherlands (NL) | |
| c8184068-3526-44a5-a9f8-c334256afe1e Estonia (EE) | |
| ee9a92b4-81a0-4ac5-b2c8-402606308704 Greece (GR) | |
| 4e5397bc-6da8-4ea2-94cd-89731343c6af Portugal (PT) | |
| ddc16888-71d6-4749-bea5-43cd2417f134 Bulgaria (BG) | |
| 19fbaf55-c3b9-44ba-baf3-f5090b796660 Sweden (SE) | |
| 1c095d94-e6d4-4f07-a475-66eacdfb1beb Poland (PL) | |
| d494512a-f80c-478b-8bba-f8074343eecc France (FR) | |
| 083e6b41-1605-4fcd-9163-90ad051f4e01 France (FR) | |
| fc45a372-1f8f-41f2-a023-25a86b48b529 Netherlands (NL) | |
| b9205d27-3b29-4acf-9875-290404a1db08 Spain (ES) | |
| 3f3cbfa1-bdc9-4026-8097-d06c3c5cc718 Poland (PL) | |
| 294ca128-edc5-44c9-bfb1-3d605c127b7a Norway (NO) | |
| 99d289b0-31bf-4f24-bc2a-977b892eaf49 Netherlands (NL) | |
| f57ccdcd-280a-4758-a767-b6e7c672c365 Netherlands (NL) | |
| c8184068-3526-44a5-a9f8-c334256afe1e Estonia (EE) | |
| ee9a92b4-81a0-4ac5-b2c8-402606308704 Greece (GR) | |
| 4e5397bc-6da8-4ea2-94cd-89731343c6af Portugal (PT) | |
| 49154b02-e348-440a-90e5-798be1c433be Sweden (SE) | |
| 9d6de0e2-6c33-40b3-827e-e044209a69bb Germany (DE) | |
| a578d5a2-5bd8-4848-a8bf-407d6e194dd3 Germany (DE) | |
| 083e6b41-1605-4fcd-9163-90ad051f4e01 France (FR) | |
| fc45a372-1f8f-41f2-a023-25a86b48b529 Netherlands (NL) | |
| b9205d27-3b29-4acf-9875-290404a1db08 Spain (ES) | |
| 8433faa5-eea1-402d-8579-ab0b9c70704e Netherlands (NL) | |
| ddc16888-71d6-4749-bea5-43cd2417f134 Bulgaria (BG) | |
| 19fbaf55-c3b9-44ba-baf3-f5090b796660 Sweden (SE) | |
| 8433faa5-eea1-402d-8579-ab0b9c70704e Netherlands (NL) | |
| 1c095d94-e6d4-4f07-a475-66eacdfb1beb Poland (PL) | |
| d494512a-f80c-478b-8bba-f8074343eecc France (FR) | |
| Ordering | |
| Order Code US and Canada | XT1NE4050AFF000XXX |
| E-Number (Finland) | 3640541 |
| E-Number (Sweden) | 3182419 |
| EAN | 8015644013158 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 101.6 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm |
| Package Level 1 Height | 135 mm |
| Package Level 1 Depth / Length | 143 mm |
| Package Level 1 Gross Weight | 1.4 kg |
| Package Level 1 EAN | 8015644013158 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 3.7 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 50 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 500 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 50 kA |
| (230 V AC) 50 kA | |
| (240 V AC) 50 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 18 kA | |
| (500 V AC) 15 kA | |
| (525 V AC) 11 kA | |
| (690 V AC) 5 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA |
| (230 V AC) 65 kA | |
| (240 V AC) 65 kA | |
| (380 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 36 kA | |
| (500 V AC) 30 kA | |
| (525 V AC) 22 kA | |
| (690 V AC) 6 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 3 Poles in Series 36 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 35...50 A |
| Short-Circuit Performance Level | N |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0080 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| GL Certificate | 1SDL000163R0103 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
