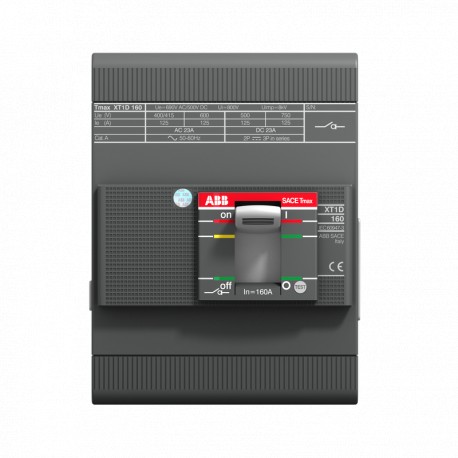

1SDA068209R1 ABB XT1D 160 4p F F
1SDA068209R1
068209
ABB
1 Pcs.
XT1D 160 4p F F
XT1D160 4P F F
Connectors > Switch disconnector
XT1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2347 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108468A1890 |
| 9AKK108468A7793 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | e76d8a62-6cd4-4181-8912-0a56883546ae Italy (IT) |
| Simplified SCIP | 1f242409-ac69-4453-b8bc-6c6876c2ddd2 Germany (DE) |
| b2d041bd-b2a7-4d64-acae-dc4c46fdc389 Poland (PL) | |
| 5016ea2b-9840-4a51-b226-a3713eaa84f4 Sweden (SE) | |
| cb238410-e7ad-4c34-aec6-91cf5fb4d99e Germany (DE) | |
| 118566cb-e785-4d81-9bbc-f5aa2cc5b11d France (FR) | |
| ff02e3a5-aa59-4b5c-b71b-5619f21b7e74 Germany (DE) | |
| e5a1ccd4-032e-4e4a-9fc8-ab88abbe4edc Germany (DE) | |
| fee23db7-252d-447c-bb37-1cb068cb9e2b France (FR) | |
| 04440351-297e-44f2-97d8-37d251b1ee9e Netherlands (NL) | |
| cd93ab6c-9071-46ed-a485-cfed87940e62 Spain (ES) | |
| 61b3f3a1-a6b0-4f54-994a-ca95439a5c37 Netherlands (NL) | |
| d32ed55f-def2-4660-8b2d-1a9fc38cde15 Poland (PL) | |
| c3267009-cd4a-43b2-936e-6c01b2817408 Norway (NO) | |
| 4260e385-4ba2-45a2-a414-dca53f88fdf4 Finland (FI) | |
| 3ae89504-1189-4571-a171-16be7ff4bebc Netherlands (NL) | |
| bd4ce42c-99c8-4fd5-b34a-3d492b63ffda Germany (DE) | |
| bda7c8d4-2cfd-4bd4-bf05-dffe4fa36c2e Denmark (DK) | |
| 6af9f44d-b7a8-4f84-bdf7-c8ebd07ca418 Croatia (HR) | |
| bf18ce5b-1418-427a-8eb0-7380d4ae1cd2 Czech Republic (CZ) | |
| 302cefe3-1517-4fd4-a984-31167cd51155 Poland (PL) | |
| 47a8b693-5a3f-445a-8301-f06408a7b705 Netherlands (NL) | |
| c1b87025-54f0-4128-987e-748b70888a2a Netherlands (NL) | |
| 5504494d-10bf-47f7-a4a5-c5170aa6f279 Estonia (EE) | |
| 9feb07a0-b8ec-452c-9a31-9e342abac6f2 Greece (GR) | |
| 36a3cb3c-0936-43a6-86c6-3db7ccdfa0e4 Portugal (PT) | |
| 1271e950-36c2-4203-b143-2024d2f02d53 Bulgaria (BG) | |
| d283c17e-b22c-4ef5-ba2c-361625361758 Sweden (SE) | |
| Ordering | |
| Order Code US and Canada | XT1DE4160DFF000XXX |
| EAN | 8015644021054 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 101.6 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm |
| Package Level 1 Height | 135 mm |
| Package Level 1 Depth / Length | 143 mm |
| Package Level 1 Gross Weight | 1.4 kg |
| Package Level 1 EAN | 8015644021054 |
| Package Level 2 EAN | 8015644021054 |
| Additional Information | |
| Brand / Label | ABB |
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 15 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2 kA |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| RoHS Date | NA |
| Short-Circuit Performance Level | D |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CB Certificate | 9AKK107680A1266 |
| CQC Certificate | CQC2014010302740479 |
| CQC2015010302794768 | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CCC | 2020980302000850 |
| 2020980302000817 | |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| EAC Certificate | 9AKK10103A1027 |
| I²t Characteristic | 1SDC210099D0206 |
| UL Certificate | 9AKK107680A7755 |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0001 |
| Classifications | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
