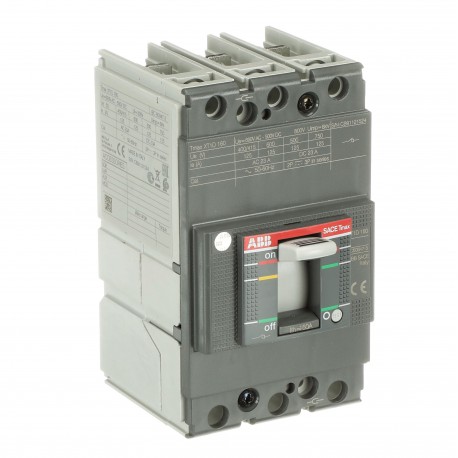

1SDA068208R1 ABB XT1D 160 3p F F
1SDA068208R1
068208
ABB
1 Pcs.
XT1D 160 3p F F
XT1D160 3P F F
Connectors > Switch disconnector
XT1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2347 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108468A1890 |
| 9AKK108468A7793 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 76e5e264-a341-4dfa-89d8-fa3be8addbca Italy (IT) |
| Simplified SCIP | e50e009b-fb7d-4b94-b611-13cf467c3b76 Germany (DE) |
| 88b5c991-476a-46d0-a726-33fd4574598f France (FR) | |
| b7788c2d-edde-4b48-b78b-127b3997c3a7 Germany (DE) | |
| cf032aea-6a4b-458f-a15a-6a8676197fb1 Sweden (SE) | |
| ce35c5ec-7bf6-4e6e-95ca-d4411bb5d855 Germany (DE) | |
| b5b9add5-07fa-40b4-94ab-812ec045947a Germany (DE) | |
| e660dffe-b69c-4315-b1a2-b9a31e2ea985 France (FR) | |
| 09286d7d-582a-4b54-96ae-2fae997ff2bb Netherlands (NL) | |
| 4f9d8cf0-6561-4acd-9a99-492b283aad18 Portugal (PT) | |
| 0e402bac-f56a-45e3-9cc7-cda76daedd74 Bulgaria (BG) | |
| 3b0c59c7-6ae9-4715-9db6-43bb293bed55 Sweden (SE) | |
| 24976b34-3236-41a7-a91e-836fe8bc2136 Poland (PL) | |
| 42b2b137-e23d-4afc-91c3-40b60bea0b43 Finland (FI) | |
| cb9c492c-2591-4041-9e7b-11fb7f277570 Netherlands (NL) | |
| 7f3fb368-01b3-4133-88fd-7431f602292e Germany (DE) | |
| ae9f74f2-2106-4772-80cb-724f71937210 Denmark (DK) | |
| 1b720682-65c4-4d63-8019-fc206acd2c13 Croatia (HR) | |
| c542d192-396f-45e0-9f75-8cd573753556 Czech Republic (CZ) | |
| 290e2e16-cca3-4a23-b7ba-d687878d4e2a Poland (PL) | |
| fe50f313-078f-4ea0-a56e-287c265b3381 Netherlands (NL) | |
| d55ab0bc-b7df-467c-b384-e54c4cdfd465 Netherlands (NL) | |
| 654bf93e-0eaf-45c8-a0c3-0297c1f9b2a9 Estonia (EE) | |
| bfcc1cd2-8554-43d9-a237-72d932584d29 Greece (GR) | |
| 6e646c7c-1c10-446c-8654-54b1965acc2f Spain (ES) | |
| d8d7028b-3908-43d6-8def-b42b5baae401 Netherlands (NL) | |
| 6984adbd-a5be-4db7-89ee-2581119145cf Poland (PL) | |
| fee51a20-f3df-4f5e-a977-51691ba088de Norway (NO) | |
| Ordering | |
| Order Code US and Canada | XT1DE3160DFF000XXX |
| EAN | 8015644021047 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 76.2 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.028 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Height | 134 mm |
| Package Level 1 Depth / Length | 130 mm |
| Package Level 1 Gross Weight | 1.082 kg |
| Package Level 1 EAN | 8015644021047 |
| Additional Information | |
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 15 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Lasttrennschalter |
| Product Type | Switch Disconnector |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2 kA |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| RoHS Date | NA |
| Short-Circuit Performance Level | D |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0080 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0001 |
| Classifications | |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
