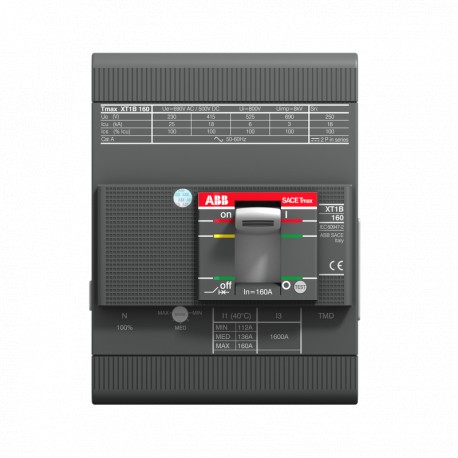

1SDA067400R1 ABB XT1C 160 TMD 25-450 4p F F
1SDA067400R1
067400
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB XT1C 160 TMD 25-450 4p F F is a molded case circuit breaker designed to protect electrical distributions against overloads and short circuits in industrial applications. Devices of this type interrupt fault currents automatically to safeguard downstream equipment and personnel.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 55.9 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- End of Life Instructions: 9AKK108468A2347
- Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Product Declaration - EPD: 9AKK108468A1890
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 3bb20cfc-7083-4831-8a5f-6054dd508236 Italy (IT)
- Simplified SCIP: 3934955e-58c9-4d96-9f50-eae65e58c63c Germany (DE)
- Order Code US and Canada: XT1CE4025AFF000XXX
- E-Number (Finland): 3640514
- EAN: 8015644012946
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| Circular Value | |
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2347 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Eco Transparency | |
| Environmental Product Declaration - EPD | 9AKK108468A1890 |
| 9AKK108468A7793 | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3bb20cfc-7083-4831-8a5f-6054dd508236 Italy (IT) |
| Simplified SCIP | 3934955e-58c9-4d96-9f50-eae65e58c63c Germany (DE) |
| 1fbc0a20-3b02-4587-9f4c-7f9cfac73274 France (FR) | |
| 4cc6f899-d5ef-433a-a0ce-72acb32f7c5f Hungary (HU) | |
| 1eba0e6b-9bd9-49f4-a41d-3265890cb7c6 Spain (ES) | |
| ad4398b2-2f39-4271-a88a-3590a4b6458a Belgium (BE) | |
| d74811d4-a212-4daf-8156-8a4bc9fa3876 Czech Republic (CZ) | |
| ac7d32d5-f35e-411a-96f4-3b5fc249b722 Croatia (HR) | |
| 1ced2162-5ba6-45a8-9c57-d8bb4c027438 Sweden (SE) | |
| 47a312b1-6132-496e-ab8a-cf514d24c5d8 Germany (DE) | |
| 74206dc9-a8d4-4e65-904d-b4a749d91b32 Denmark (DK) | |
| 30b6650c-3ca1-40d3-a419-b65baff53027 Germany (DE) | |
| 642b0283-8f82-4808-953d-bc134f5b3604 France (FR) | |
| 1428167b-999f-4124-85e9-135cb1e79913 Greece (GR) | |
| fc03168f-c0d5-439c-9ce1-16c0d44231bc Belgium (BE) | |
| 9eaacf65-ef8f-4df2-8242-8dc53c235e6c Sweden (SE) | |
| 6814870a-108c-44e0-9a91-dd7aaf5dc19c Finland (FI) | |
| abb08200-d402-49b8-ac93-9b3c083f27a6 Netherlands (NL) | |
| 78d058ae-56ca-4f74-929e-02718f00d9ff Norway (NO) | |
| c9e98a9c-5380-4502-b7ac-e9ae1c9e3f05 Estonia (EE) | |
| a8e58da8-6afd-4230-836e-2ec90c7a3ce5 Hungary (HU) | |
| 0cc665f2-5192-4db0-9dbe-30b69a8c5620 Poland (PL) | |
| 39f4a141-2a7a-4976-adc1-84e5449fe7db Bulgaria (BG) | |
| cabdcf5a-c05f-4326-9f0c-451135e7227b Poland (PL) | |
| bac84bcd-3332-4efe-85ef-e4883bd639a8 Poland (PL) | |
| 86f2b063-ac4e-469b-a25e-dd307bbe26dd Portugal (PT) | |
| 5725a9e8-ee35-4a12-a76b-937034ff4219 Germany (DE) | |
| 107e117e-82b3-4565-8ccd-57e8e4af5dd2 Germany (DE) | |
| Ordering | |
| Order Code US and Canada | XT1CE4025AFF000XXX |
| E-Number (Finland) | 3640514 |
| EAN | 8015644012946 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 101.6 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm |
| Package Level 1 Height | 135 mm |
| Package Level 1 Depth / Length | 143 mm |
| Package Level 1 Gross Weight | 1.435 kg |
| Package Level 1 EAN | 8015644012946 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4 |
| Opening Time | CB with SOR 15 ms |
| CB with UVR 15 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 2 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 25 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 450 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 40 kA |
| (230 V AC) 40 kA | |
| (240 V AC) 40 kA | |
| (380 V AC) 25 kA | |
| (415 V AC) 25 kA | |
| (440 V AC) 12.5 kA | |
| (500 V AC) 9 kA | |
| (525 V AC) 8 kA | |
| (690 V AC) 4 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 3 Poles in Series 25 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 40 kA |
| (230 V AC) 40 kA | |
| (240 V AC) 40 kA | |
| (380 V AC) 25 kA | |
| (415 V AC) 25 kA | |
| (440 V AC) 25 kA | |
| (500 V AC) 18 kA | |
| (525 V AC) 8 kA | |
| (690 V AC) 4 kA | |
| (250 V DC) 2 Poles in Series 25 kA | |
| (500 V DC) 3 Poles in Series 25 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 17.5...25 A |
| Short-Circuit Performance Level | C |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0080 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| GL Certificate | 1SDL000163R0103 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
