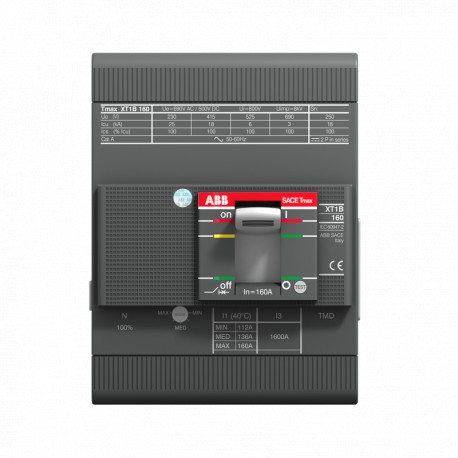

ABB 1SDA066813R1 1SDA066813R1 ABB XT1B 160 TMD 32-450 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA066813R1 ABB XT1B 160 TMD 32-450 4p F F

1SDA066813R1

066813

ABB

1 Pcs.

XT1B 160 TMD 32-450 4p F F XT1B160 TMD R32 Im450 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 55.9 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2347
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A1890
9AKK108468A7793
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP12f3e9a1-02b0-4aa6-abdb-9b8bc21959ff Italy (IT)
Simplified SCIP8b05e7f0-8aca-43b9-9959-578ad60d5f91 France (FR)
418ce194-6b00-45aa-ba3e-74bc34fece74 Netherlands (NL)
ea50463a-3fca-48d4-9131-08d9ece555f5 Poland (PL)
8a9f6533-4900-49b4-945a-faaeb88bd6e0 Sweden (SE)
f7ec28ab-1cfa-4164-941b-3294cbdc3860 Belgium (BE)
ac229db7-d539-4af6-9d48-c290c4ed0678 Poland (PL)
720ff9fd-c349-4470-86d9-561c322a806d France (FR)
d61bfad8-e7fd-46ec-9029-3bb11e829129 Sweden (SE)
d41897ba-617b-4420-a157-6a6ce9d275c5 Hungary (HU)
3f6f7b53-7278-41d7-93e6-a2319db634f5 Germany (DE)
8cf4c0c6-fe84-4ba1-899d-e7d3bcbd404c Germany (DE)
4bbf3450-496f-4558-b7bf-1f8baed8f109 Poland (PL)
de5d205b-6b1c-48c7-9b79-42c55543352d Norway (NO)
760038f9-957c-4585-a9f8-dabf40b987e3 Belgium (BE)
d7ef0a9c-919e-4210-9795-593f3b217e01 Finland (FI)
c53c18fa-5909-406b-b71b-d5ba989de281 Denmark (DK)
cd96d07a-84e1-49c7-a63f-6b57c56ec3b3 Germany (DE)
eb69dab5-c447-439f-a8b1-83e529902755 Greece (GR)
207c4f79-39de-424f-b8e3-94bd0855beb5 Germany (DE)
1d7cf903-8c08-4c96-b40f-c5f60fe8704d Estonia (EE)
3c14939a-f7cd-42ca-85a6-e5b98639318f Germany (DE)
06b8055d-6448-4ac1-b03f-ab76ceb1d30b Bulgaria (BG)
fbc7e723-65b2-4a3a-b7ed-b549b6d58ffe Portugal (PT)
6f2ef006-5be9-4bce-9a55-1a51deef0d71 Czech Republic (CZ)
7fb33876-e505-4e35-9baf-e8055dbc482e Spain (ES)
78275802-00a5-4e99-a816-f93471df2c4f Hungary (HU)
c867a63f-c9c6-4606-82dc-954d21f733fb Croatia (HR)
Ordering
Order Code US and CanadaXT1BE4032AFF000XXX
E-Number (Finland)3640506
EAN8015644694517
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width101.6 mm
Product Net Height130 mm
Product Net Depth / Length70 mm
Product Net Weight1.4 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width128 mm
Package Level 1 Height135 mm
Package Level 1 Depth / Length143 mm
Package Level 1 Gross Weight1.441 kg
Package Level 1 EAN8015644694517
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 45.5 ... 80 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 2.1 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)32 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)450 A
Rated Insulation Voltage (Ui)800 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
Rated Uninterrupted Current (Iu)160 A
Recommended Screw DriverMain Circuit M6
ReleaseTMD
Release TypeTM
Setting Range22.4...32 A
Short-Circuit Performance LevelB
StandardsIEC60947-2
Sub-typeXT1
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque6 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0080
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5532
GL Certificate1SDL000163R0103
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000719R0100
Mechanical Drawings1SDH000719R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000719R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
