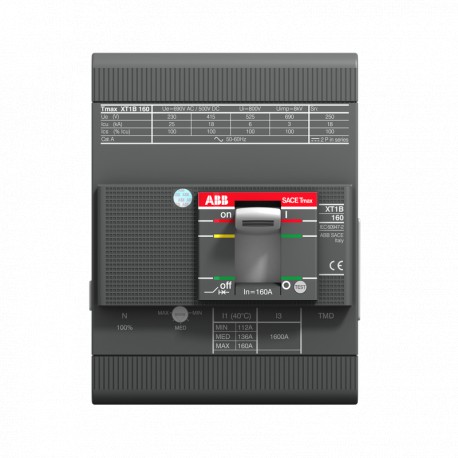

1SDA066888R1 ABB XT1B 160 TMD 125-1250 4p F F InN 100%
1SDA066888R1
066888
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
XT1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB molded case circuit breaker safeguards electrical distribution networks by interrupting overloads and short circuits before they damage connected assets. This four-pole unit is engineered for reliable performance in demanding commercial and industrial installation environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2347
- Environmental Product Declaration - EPD: 9AKK108468A1890
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 55.9 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 39b94bbb-fbdf-42a0-8567-a56d3fb8c22b Italy
- Simplified SCIP: e09b3ee0-9864-4765-99d1-6f7e6e710adf Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: XT1BE4125AFF000XXX
- E-Number (Norway): 4309709
- EAN: 8015644007911
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2347 |
| Environmental Product Declaration - EPD | 9AKK108468A1890 |
| 9AKK108468A7793 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 55.9 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 39b94bbb-fbdf-42a0-8567-a56d3fb8c22b Italy |
| Simplified SCIP | e09b3ee0-9864-4765-99d1-6f7e6e710adf Germany |
| eed6294e-ec3f-4526-a755-13c0765126fb Poland | |
| 666e8cf3-a515-4baf-846b-e3e0099a1b57 Norway | |
| b924fb0a-dee7-48fb-9292-380259f2dc37 Finland | |
| cb637aa4-49a9-4fd6-8ddd-d872770ef718 Netherlands | |
| 094d9f86-f733-40fb-9e5e-23f7da9c9c71 Germany | |
| 333bc754-7502-47a8-854c-fe9e64bc7086 Denmark | |
| ae41d3e3-6b8a-483a-8df0-38fa03af00d5 Germany | |
| 750e6d42-bb4c-464d-9bde-d34a1085c6be Croatia | |
| b3bff1f6-be51-46e8-aee8-85ad560d410b Czech Republic | |
| 0ecbe786-0650-4c0d-97ba-400ae405b4c3 Poland | |
| 4cc1f192-86ac-4806-b927-1be30942bb87 Netherlands | |
| c764a24c-a96d-4d8f-bec0-e2f51518b1df Netherlands | |
| 7671e549-87a4-4cbc-bae0-9c108d422973 Estonia | |
| c171824a-23f4-421f-a37f-fb8abfb68eab Greece | |
| 85a96d89-dfd8-4947-bbb8-92d660aeaf5c Portugal | |
| 05ffd6fd-939e-4b18-8b18-e006bba03d93 Bulgaria | |
| 59489c45-5971-4f6f-8caf-a049eecd265f Sweden | |
| 9df70b79-7bd1-4a7e-bb0d-bc8691827525 Poland | |
| 02ee233c-63f6-4f00-8a05-1982e2fac87b France | |
| 18ba7d0d-0703-4074-92d0-cec0cad19cf8 Sweden | |
| 586c1d66-4d79-4b1e-9245-6a750cb66c85 Germany | |
| ffb06744-b25d-4af1-bdd8-d78c70718f6f Germany | |
| dbe70057-d962-4094-bf7e-9f640aba20cf France | |
| 3e9c5f0d-b1e9-4d23-a049-02ff4c8d2a0a Netherlands | |
| 24a6c4b2-c085-4105-9294-7826ee28ed36 Spain | |
| 12617b73-8e1f-4b38-9606-2a242c6f10cb Netherlands | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | XT1BE4125AFF000XXX |
| E-Number (Norway) | 4309709 |
| EAN | 8015644007911 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 101.6 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 128 mm |
| Package Level 1 Height | 135 mm |
| Package Level 1 Depth / Length | 143 mm |
| Package Level 1 Gross Weight | 1.45 kg |
| Package Level 1 EAN | 8015644007911 |
| Additional Information | |
| Circuit Breaker Type to be Associated | Power Distribution |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001295R0080 |
| Technical | |
| Connecting Capacity Main Circuit | Busbar 45.5 ... 80 mm² |
| Current Type | AC/DC |
| Electrical Durability | 120 cycles per hour |
| 8000 cycle | |
| Mechanical Durability | 240 cycles per hour |
| 25000 cycle | |
| Number of Poles | 4P |
| Opening Time | CB with SOR 30 ms |
| CB with UVR 30 ms | |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 10.7 W |
| Rated Current (In) | 125 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1250 A |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC |
| 500 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 25 kA |
| (230 V AC) 25 kA | |
| (240 V AC) 25 kA | |
| (380 V AC) 18 kA | |
| (415 V AC) 18 kA | |
| (440 V AC) 11.25 kA | |
| (500 V AC) 8 kA | |
| (525 V AC) 6 kA | |
| (690 V AC) 3 kA | |
| (250 V DC) 2 Poles in Series 18 kA | |
| (500 V DC) 3 Poles in Series 18 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 25 kA |
| (230 V AC) 25 kA | |
| (240 V AC) 25 kA | |
| (380 V AC) 18 kA | |
| (415 V AC) 18 kA | |
| (440 V AC) 15 kA | |
| (500 V AC) 8 kA | |
| (525 V AC) 6 kA | |
| (690 V AC) 3 kA | |
| (250 V DC) 2 Poles in Series 18 kA | |
| (500 V DC) 3 Poles in Series 18 kA | |
| Rated Uninterrupted Current (Iu) | 160 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M6 |
| Release | TMD |
| Release Type | TM |
| Setting Range | 87.5...125 A |
| Short-Circuit Performance Level | B |
| Standards | IEC60947-2 |
| Sub-type | XT1 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | 9AKK106713A5532 |
| GL Certificate | 1SDL000163R0103 |
| LR Certificate | 1SDL000163R0100 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Dimension Diagram | 1SDH000719R0100 |
| Mechanical Drawings | 1SDH000719R0100 |
| Wiring Diagram | 1SDM000068R0001 |
| Instructions and Manuals | 1SDH000719R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
