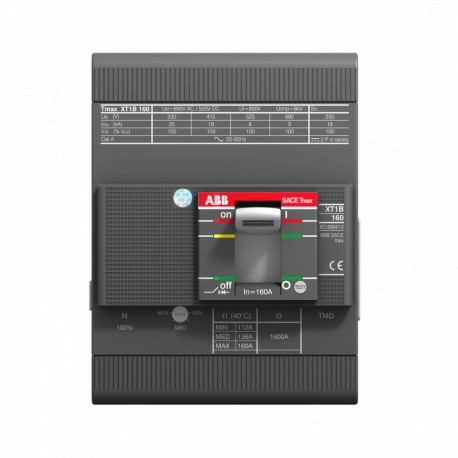

1SDA066818R1 ABB XT1B 160 TMD 100-1000 4p F F

1SDA066818R1

066818

ABB

1 Pcs.

XT1B 160 TMD 100-1000 4p F F XT1B160 TMD R100 Im1000 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
XT1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 55.9 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2347
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A1890
9AKK108468A7793
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP688e96d7-2d1c-4e22-b59c-50ff06516bf8 Italy (IT)
Simplified SCIPb081d9e5-0266-467a-8f8f-906a85a12afa Germany (DE)
4be3f089-aca5-4fb8-8ca5-ca75d8b5d067 Sweden (SE)
27550f41-4161-4b3a-8225-f1e246ce2a09 Germany (DE)
6c03d9fa-a586-4041-bf40-cd77812ad7f8 Germany (DE)
90c62ad0-99e2-4cfb-a4b3-7a1d2b822175 Czech Republic (CZ)
70f88417-6d1f-4419-b8ca-cd081ff4976a Poland (PL)
9f1ba41e-13c8-4949-8f02-c3e198ca3ccb Netherlands (NL)
7f066c37-7fb1-47df-b33d-5f27effe988d Netherlands (NL)
ba2a17d0-ebc2-40ef-8670-1145eb519351 Estonia (EE)
72d61050-bae5-4d72-b9f9-bd391a4a830e Greece (GR)
d9334c91-3248-4e66-9b4c-3919e09712e4 Portugal (PT)
dd27b78a-c66a-4eb0-b691-907a2e33f930 Norway (NO)
6bfbb959-ec01-495a-a4a0-08ac8e4e3667 Finland (FI)
8186f6da-48cd-49d8-a4ec-d7d71c32770c Netherlands (NL)
b3c31785-12c6-4630-83f1-b2d78d65bea1 Germany (DE)
9607cf14-ae26-4495-a29e-67cdeff195c1 Denmark (DK)
b7deb7c4-4af4-4932-8db3-8f1bd014dce3 Germany (DE)
d1429ebb-e55d-4293-a755-dff56a49be68 Croatia (HR)
6d10ed05-32eb-48f2-88a8-1b46926daf87 Poland (PL)
13935ad8-46e8-49d7-9e27-360bd0cbc6a4 France (FR)
d9a62902-39ce-4272-bc64-dbb65a1b0e6f Netherlands (NL)
c2927a9e-50d1-4415-82df-df6998b70511 Spain (ES)
fea510e3-600e-4a0a-9c52-8483df25f240 Netherlands (NL)
b55767a9-8b5d-4dce-b7f7-413e4c989aec Bulgaria (BG)
ed811c7e-4d71-472c-8176-6c42e3067f7e Sweden (SE)
4cd65b04-2f4a-4fe8-8d5a-cb5ddd0c309d Poland (PL)
458cef3b-a92d-4b27-894c-1c5125dd37d5 France (FR)
Ordering
Order Code US and CanadaXT1BE4100AFF000XXX
E-Number (Finland)3640500
EAN8015644007256
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width101.6 mm
Product Net Height130 mm
Product Net Depth / Length70 mm
Product Net Weight1.4 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width128 mm
Package Level 1 Height135 mm
Package Level 1 Depth / Length143 mm
Package Level 1 Gross Weight1.44 kg
Package Level 1 EAN8015644007256
Additional Information
Circuit Breaker Type to be AssociatedPower Distribution
Connecting Capacity Main CircuitBusbar 45.5 ... 80 mm²
Current TypeAC/DC
Electrical Durability120 cycles per hour
8000 cycle
Mechanical Durability240 cycles per hour
25000 cycle
Number of Poles4
Opening TimeCB with SOR 15 ms
CB with UVR 15 ms
Order Multiple1 piece
Power Lossat Rated Operating Conditions per Pole 7 W
Product Main TypeSACE Tmax XT
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)100 A
Rated Frequency (f)50 / 60 Hz
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Instantaneous Short-Circuit Current Setting (Ii)1000 A
Rated Insulation Voltage (Ui)800 V
Rated Operational Voltage690 V AC
500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 11.25 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 25 kA
(230 V AC) 25 kA
(240 V AC) 25 kA
(380 V AC) 18 kA
(415 V AC) 18 kA
(440 V AC) 15 kA
(500 V AC) 8 kA
(525 V AC) 6 kA
(690 V AC) 3 kA
(250 V DC) 2 Poles in Series 18 kA
(500 V DC) 3 Poles in Series 18 kA
Rated Uninterrupted Current (Iu)160 A
Recommended Screw DriverMain Circuit M6
ReleaseTMD
Release TypeTM
Setting Range70...100 A
Short-Circuit Performance LevelB
StandardsIEC60947-2
Sub-typeXT1
Terminal Connection TypeFront
Terminal TypeBolt
Tightening Torque6 N·m
VersionF
CAD Dimensional Drawing1SDH001295R0080
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CE9AKK106713A5532
GL Certificate1SDL000163R0103
LR Certificate1SDL000163R0100
UL CertificateNo certification needed
VDE CertificateNo certification needed
Dimension Diagram1SDH000719R0100
Mechanical Drawings1SDH000719R0100
Wiring Diagram1SDM000068R0001
Instructions and Manuals1SDH000719R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39120000
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
