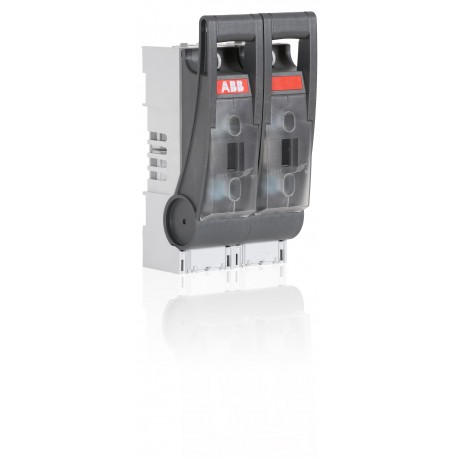

ABB 1SEP600127R0002 1SEP600127R0002 ABB Disconnect fuse XLP3 630A 2P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SEP600127R0002 ABB Disconnect fuse XLP3 630A 2P

1SEP600127R0002

600127

ABB

1 Pcs.

Disconnect fuse XLP3 630A 2P XLP3 630A 2P fuse disconnect XLP3-2P-4BC Fuse Switch Disconnector

Connectors > Fuse switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This disconnect fuse XLP3 630A 2P is an Abb component built for secure low-voltage power distribution. Industrial facilities utilize disconnect fuses to isolate electrical sections during maintenance while offering dependable short-circuit protection via integrated fuse links. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SEC312012D0201
  • Instructions and Manuals: No Instructions and Manuals needed
  • Degree of Protection: IP30
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: China
  • Product Net Width: 179 mm
  • Product Net Height: 142 mm
  • Product Net Depth / Length: 330 mm
  • Product Net Weight: 4.3 kg
  • Package Level 1 Units: shrink-wrap 1 piece
  • Package Level 1 Width: 179 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SEC312012D0201
Instructions and ManualsNo Instructions and Manuals needed
Environmental
Degree of ProtectionIP30
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginChina
Dimensions
Product Net Width179 mm
Product Net Height142 mm
Product Net Depth / Length330 mm
Product Net Weight4.3 kg
Container Information
Package Level 1 Unitsshrink-wrap 1 piece
Package Level 1 Width179 mm
Package Level 1 Depth / Length330 mm
Package Level 1 Height142 mm
Package Level 1 Gross Weight4.3 kg
Package Level 1 EAN7025840086758
Package Level 2 EANdetach
Technical
Degree of ProtectionIP30
Device Type Manager (DTM)Fuseswitchdisconnector
Electronic Fuse MonitoringNo
Fuse SizeNH3
Fuse SystemDIN
Handle TypeFront cover 2P
Mounting TypeBaseplate
Number of Poles2P
Power Lossat Rated Load 24 W
Rated Conditional Short-Circuit Current (Inc)(690 V) 50 kiloampere rms
Rated Current (In)630 A
Rated Frequency (f)Main Circuit 50/60 Hz
Rated Impulse Withstand Voltage (Uimp)Main Circuit 8 kV
Rated Operational Current AC-21B (Ie)(690 V) 500 A
Rated Operational Current AC-22B (Ie)(500 V) 630 A
Rated Operational Current DC-22B(440 V) 630 A
Rated Operational Voltage440 V DC
500 V AC
690 V AC
Rated Voltage (Ur)440 V DC
500 V AC
690 V AC
Special FunctionsNot Included
StandardsIEC60947-3
GB/T14048.3
Terminal TypeCable Clamp
Certificates and Declarations
Declaration of Conformity - CE1SEP500050P0001
External Classifications and Standards
Object Classification CodeS
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)1687827
E-Number (Sweden)3171968
