View larger

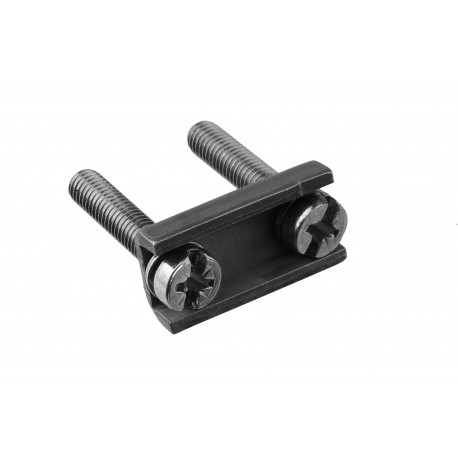

1SEP407733R0002 ABB XLP1 Bridge Clamp (BC)
1SEP407733R0002
407733
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
XLP, SLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SEP407733R0002 XLP1 Bridge Clamp (BC) is a specialized mechanical accessory used to interconnect busbars and secure conductive components within modular power distribution frameworks. Such bridging elements ensure reliable electrical continuity and mechanical stability in high-current distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: China
- Product Net Width: 20 mm
- Product Net Height: 150 mm
- Product Net Depth / Length: 100 mm
- Product Net Weight: 0.11 kg
- Package Level 1 Units: bag 1 piece
- Package Level 1 Width: 20 mm
- Package Level 1 Depth / Length: 100 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SEC312012D0201 |
| Instructions and Manuals | No Instructions and Manuals needed |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | China |
| Dimensions | |
| Product Net Width | 20 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 100 mm |
| Product Net Weight | 0.11 kg |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 20 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 150 mm |
| Package Level 1 Gross Weight | 0.11 kg |
| Package Level 1 EAN | 7025840054597 |
| Package Level 2 EAN | detach |
| Technical | |
| Mounting Type | Bridge Clamps |
| Number of Poles | 3P |
| Special Functions | Not Included |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SEP500050P0001 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39120000 |
| eClass | V11.1 : 27371392 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3601172 |
| E-Number (Norway) | 1687189 |
| E-Number (Sweden) | 3171989 |
