View larger
Images are for illustrative purposes only. Please refer to data sheet for details

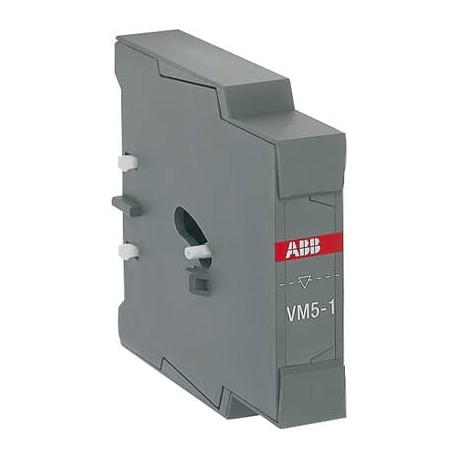

1SBN030100R1000 ABB VM5-1 Block Contactor Accessories
1SBN030100R1000
030100
ABB
1 Pcs.
VM5-1 Block Contactor Accessories
VM5-1 MECHANICAL INTERLOCK
VM5-1 Mechanical Interlock Unit
Automation > Mechanic interlock for switch
"A" FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | FPTC407718P0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 15 mm |
| Product Net Depth / Length | 71 mm |
| Product Net Height | 70 mm |
| Product Net Weight | 0.066 kg |
| Technical | |
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Suitable For | A9 |
| A12 | |
| A16 | |
| A26 | |
| A30 | |
| A40 | |
| AL9 | |
| AL9Z | |
| AL12 | |
| AL12Z | |
| AL16 | |
| AL16Z | |
| AL26 | |
| AL30 | |
| AL40 | |
| TAL9 | |
| TAL12 | |
| TAL16 | |
| TAL26 | |
| TAL30 | |
| TAL40 | |
| AX06 | |
| AX09 | |
| AX12 | |
| AX18 | |
| AX25 | |
| AX32 | |
| AX40 | |
| Product Name | Mechanical Interlock Unit |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250835U1000 |
| Declaration of Conformity - UKCA | 1SBD250836U1000 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| RINA Certificate | RINA_ELE172319XG001 |
| UL Certificate | UL_20160418-E252354_5_5 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 105.5 mm |
| Package Level 1 Height | 26 mm |
| Package Level 1 Gross Weight | 0.066 kg |
| Package Level 1 EAN | 3471522121363 |
| External Classifications and Standards | |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Feature Name | Feature Value |
|---|---|
| Auxiliary contacts, extendable (EF001450) | No |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
