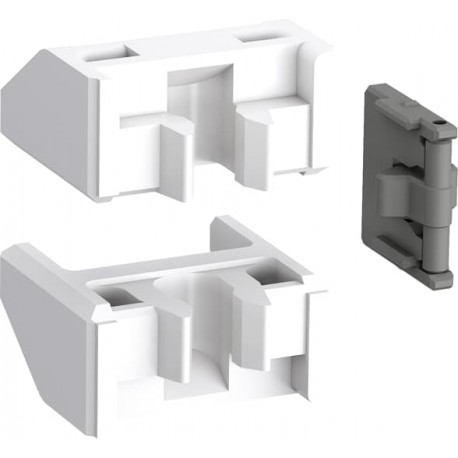

1SBN030105T1000 ABB VM4 Mechanical Interlock Unit
1SBN030105T1000
030105
ABB
10 Pcs.
Automation > Mechanic interlock for switch
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb VM4 Mechanical Interlock Unit creates a physical barrier between paired contactors to prevent simultaneous electrical energization in automated control loops. Such mechanical components are vital for reversing and dual-motor setups to ensure safe operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Instructions and Manuals: 1SBC101028M6801
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 20 mm
- Product Net Depth / Length: 10 mm
- Product Net Height: 19.8 mm
- Product Net Weight: 0.005 kg
- Maximum Mechanical Switching Frequency: 1800 cycles per hour
- Suitable For: AF09
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Information: 2CMT2021-006277
- RoHS Status: Following EU Directive 2011/65/EU
- WEEE B2C / B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
