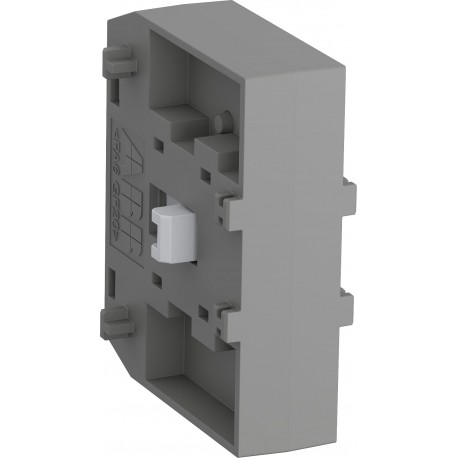

1SFN030300R1000 ABB VM19 Mechanical Interlock Unit
1SFN030300R1000
030300
ABB
1 Pcs.
Automation > Mechanic interlock for switch
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A mechanical interlock unit uses physical blocking mechanisms to prevent dual-circuit activation, ensuring that interconnected switching devices cannot close together and cause fault conditions. The Abb 1SFN030300R1000 VM19 Mechanical Interlock Unit offers straightforward physical integration for block contactor assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SFC100012M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 70 mm
- Product Net Depth / Length: 31.9 mm
- Product Net Height: 58.7 mm
- Product Net Weight: 0.05 kg
- Terminal Type: Screw Terminals
- Suitable For: AF116
- Suitable for Product Class: Block Contactors
- Product Name: Mechanical Interlock Unit
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC100012M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Depth / Length | 31.9 mm |
| Product Net Height | 58.7 mm |
| Product Net Weight | 0.05 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF116 |
| AF140 | |
| AF146 | |
| AF190 | |
| AF205 | |
| AF265 | |
| AF305 | |
| AF370 | |
| AF116B | |
| AF140B | |
| AF146B | |
| AF190B | |
| AF205B | |
| AF265B | |
| AF305B | |
| AF370B | |
| AX260 | |
| AX300 | |
| AX370 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Mechanical Interlock Unit |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMT004895 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 70 mm |
| Package Level 1 Depth / Length | 58.7 mm |
| Package Level 1 Height | 31.9 mm |
| Package Level 1 Gross Weight | 0.07 kg |
| Package Level 1 EAN | 7320500492574 |
| External Classifications and Standards | |
| Object Classification Code | R |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3707469 |
| E-Number (Norway) | 4117833 |
| E-Number (Sweden) | 3210176 |
