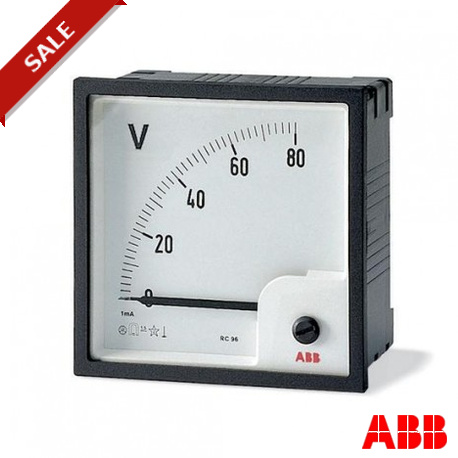

ABB 2CSG113110R4001 2CSG113110R4001 ABB VLM-1-60/96 Analogue voltmeter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG113110R4001 ABB VLM-1-60/96 Analogue voltmeter

2CSG113110R4001

113110

ABB

1 Pcs.

VLM-1-60/96 Analogue voltmeter Voltim.anal.panel VLM-1-60/96

Automation > Voltmeter for installation
Measure, various ITSCE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Display electrical voltage metrics directly on switchboard doors using the Abb 2CSG113110R4001 analogue voltmeter. These conventional gauges allow maintenance teams to perform quick visual assessments of active electrical paths without opening enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Meter Type: Analogue
  • Mounting Type: Front-panel
  • Voltage Range: 60 V AC
  • Dimensions: 96 mm x 96 mm

More info

▲

VLM-1-60/96 is an 96x96mm front-panel analogue voltmeter for ac networks. Direct insertion.

Ordering

  • EAN:
    8012542546801
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    90303100

Dimensions

  • Product Net Width:
    0.053m
  • Product Net Height:
    0.096m
  • Product Net Depth:
    0.096m
  • Product Net Weight:
    0.400kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.12 m
  • Package Level 1 Height:
    0.1 m
  • Package Level 1 Length:
    0.1 m
  • Package Level 1 Gross Weight:
    0.4 kg
  • Package Level 1 EAN:
    8012542546801

Technical

  • Meter Type:
    Analogue
  • Mounting Type:
    Front-panel
  • Dimensions:
    96 mm x 96 mm
  • Voltage Range:
    60 V AC
  • Power Loss:
    at Rated Operating Conditions per Pole 1.5 W

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    P
  • ETIM 4:
    EC001438 - Voltage monitoring relay
  • ETIM 5:
    EC001438 - Voltage monitoring relay
