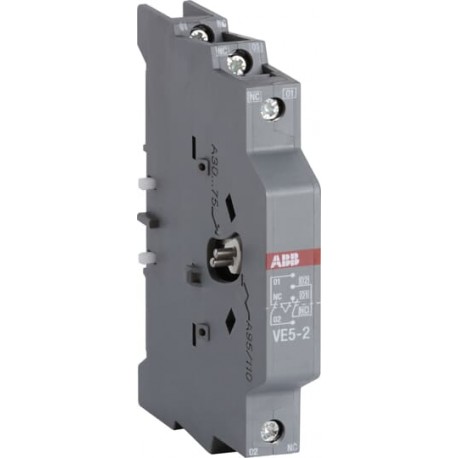

ABB 1SBN030210R1000 1SBN030210R1000 ABB VE5-2 Block Contactor Accessories View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBN030210R1000 ABB VE5-2 Block Contactor Accessories

1SBN030210R1000

030210

ABB

1 Pcs.

VE5-2 Block Contactor Accessories VE5-2 MECHANICAL-ELECTRONIC INTERLOCKING. VE5-2 Mechanical and Electrical Interlock Unit

Automation > Mechanic interlock for switch
"A" FRCTLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and ManualsFPTC407713P0002
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width15 mm
Product Net Depth / Length89.65 mm
Product Net Height108 mm
Product Net Weight0.146 kg
Technical
Number of Auxiliary Contacts NC2
Number of Poles2P
StandardsIEC/EN 60941-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14
Rated Operational VoltageAuxiliary Circuit 690 V
Rated Frequency (f)Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)(500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 6 A
(48 V) 2.8 A
(72 V) 1 A
(125 V) 0.55 A
(250 V) 0.3 A
Short-Circuit Protective DevicesAuxiliary Circuit - gG Type Fuses 10 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V
Mechanical Durability5 million
Power Lossat Rated Operating Conditions per Pole 0.1 W
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal TypeScrew Terminals
Suitable ForAF45
AF50
AF63
AF75
AF95B
A30
A40
A45
A50
A63
A75
A95
A110
AE45
AE50
AE63
AE75
TAE45
TAE50
TAE75
GA75
GAE75
AX32
AX40
AX50
AX65
AX80
AX95
AX115
AX150
Product NameMechanical and Electrical Interlock Unit
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateCB_CN_37804
CCC CertificateCCC_2016010304881659
CQC CertificateCQC2016010304881659
Declaration of Conformity - CCC2020970304002733
Declaration of Conformity - CE1SBD250814U1000
Declaration of Conformity - UKCA1SBD250831U1000
GOST CertificateGOST_POCCFRME77B07175
RINA CertificateRINA_ELE172319XG001
UL CertificateUL_20160418-E252354_5_5
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width146 mm
Package Level 1 Depth / Length153.5 mm
Package Level 1 Height26 mm
Package Level 1 Gross Weight0.146 kg
Package Level 1 EAN3471522121387
External Classifications and Standards
ETIM 7EC001044 - Mechanic interlock for switch
ETIM 8EC001044 - Mechanic interlock for switch
ETIM 9EC001044 - Mechanic interlock for switch
eClassV11.0 : 27371303
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory

ETIM for 1SBN030210R1000 Low-voltage industrial controls and switchgear (EC001044)
Feature Name Feature Value
Auxiliary contacts, extendable (EF001450) Yes
Number of contacts as normally closed contact (EF008255) 2
Number of contacts as normally open contact (EF008256) 0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
