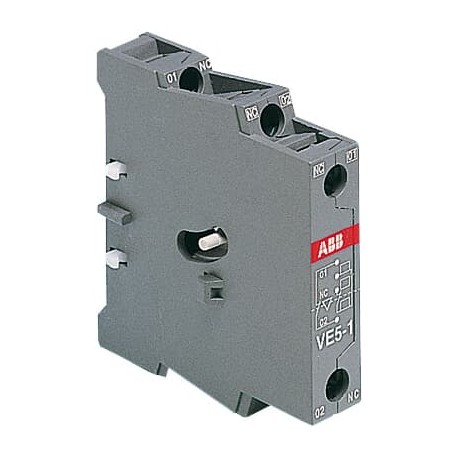

1SBN030110R1000 ABB VE5-1 Block Contactor Accessories
1SBN030110R1000
030110
ABB
1 Pcs.
Automation > Mechanic interlock for switch
"A" FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SBN030110R1000 ABB VE5-1 Block Contactor Accessories unit attaches directly to compatible industrial contactors to expand electrical signaling capabilities and manage auxiliary control circuits within automation panels. Auxiliary contact blocks of this design allow operators to route interlock signals and feedback loops reliably through industrial control systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: FPTC407718P0001
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 15 mm
- Product Net Depth / Length: 70 mm
- Product Net Height: 68 mm
- Product Net Weight: 0.076 kg
- Number of Auxiliary Contacts NC: 2
- Number of Poles: 2P
- Rated Operational Voltage: Auxiliary Circuit 690 V
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-5-1, Θ = 40 °C 16 A
- Rated Operational Current AC-15 (I e ): (500 V) 2 A
- Rated Operational Current DC-13 (I e ): (24 V) 6 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | FPTC407718P0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 15 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Height | 68 mm |
| Product Net Weight | 0.076 kg |
| Technical | |
| Number of Auxiliary Contacts NC | 2 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| (690 V) 2 A | |
| (24 / 127 V) 6 A | |
| (220 / 240 V) 4 A | |
| (380 / 400 V) 3 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| (48 V) 2.8 A | |
| (72 V) 1 A | |
| (125 V) 0.55 A | |
| (250 V) 0.3 A | |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| acc. to UL/CSA 600 V | |
| Mechanical Durability | 5 million |
| Power Loss | at Rated Operating Conditions per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | A9 |
| A12 | |
| A16 | |
| A26 | |
| A30 | |
| A40 | |
| AL9 | |
| AL9Z | |
| AL12 | |
| AL12Z | |
| AL16 | |
| AL16Z | |
| AL26 | |
| AL30 | |
| AL40 | |
| TAL9 | |
| TAL12 | |
| TAL16 | |
| TAL26 | |
| TAL30 | |
| TAL40 | |
| AX06 | |
| AX09 | |
| AX12 | |
| AX18 | |
| AX25 | |
| AX32 | |
| AX40 | |
| Product Name | Mechanical and Electrical Interlock Unit |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_CN_37804 |
| CCC Certificate | CCC_2016010304881659 |
| CQC Certificate | CQC2016010304881659 |
| Declaration of Conformity - CCC | 2020970304002733 |
| Declaration of Conformity - CE | 1SBD250814U1000 |
| Declaration of Conformity - UKCA | 1SBD250831U1000 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| RINA Certificate | RINA_ELE172319XG001 |
| UL Certificate | UL_20160418-E252354_5_5 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 105.5 mm |
| Package Level 1 Height | 26 mm |
| Package Level 1 Gross Weight | 0.076 kg |
| Package Level 1 EAN | 3471522121370 |
| External Classifications and Standards | |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| eClass | V11.0 : 27371303 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3709234 |
