ABB GJL1311903R8010 GJL1311903R8010 ABB VB7-30-01-F-80 Mini Reversing Contactor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

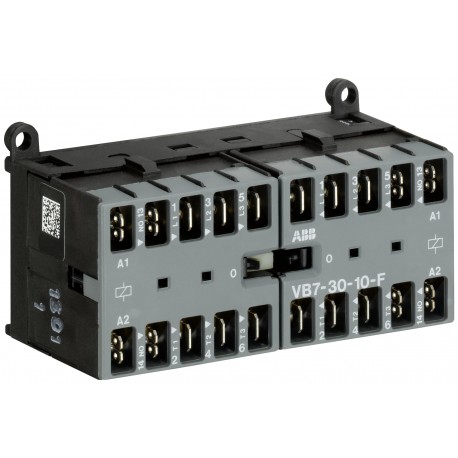

GJL1311903R8010 ABB VB7-30-01-F-80 Mini Reversing Contactor

GJL1311903R8010

1311903

ABB

1 Pcs.

VB7-30-01-F-80 Mini Reversing Contactor VB7-30-01-F MINI INVERTER 220-240V VB7-30-01-F-80 Mini Reversing Contactor 220 ... 240 V AC - 3 NO - 0 NC - Flat Pin Connections

Automation > Combination of contactors
Minicontactors B6-B7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB VB7-30-01-F-80 Mini Reversing Contactor is utilized to alternate the direction of rotation in three-phase motors within automated industrial environments. Reversing contactors integrate interlocked switching elements to safely reverse phase sequences without causing short circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Reversing safety
  • Rated control supply voltage AC 50 Hz (EF003978): 220 V
  • Rated control supply voltage AC 60 Hz (EF003979): 220 V
  • Voltage type for actuating (EF008242): AC
  • Rated operation current Ie at AC-1, 400 V (EF001393): 6 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 12 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated operation power NEMA (EF011960): 2.2371 kW
  • Number of normally open contacts as main contact (EF001374): 3
  • Type of electrical connection of main circuit (EF006819): Flat plug-in connection
  • Degree of protection (IP) (EF005474): IP20
  • Degree of protection (NEMA) (EF011959): 1
  • Suitable for rail mounting (EF003972): Yes

More info

▲

The VB7-30-01-F mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, flat pin connection and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.

Ordering

  • EAN:
    4013614191374
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Dimensions

  • Product Net Width:
    96.5mm
  • Product Net Height:
    57.5mm
  • Product Net Depth:
    46.5mm
  • Product Net Weight:
    0.345kg

Container Information

  • Package Level 1 Units:
    5 piece
  • Package Level 1 Width:
    115 mm
  • Package Level 1 Height:
    54 mm
  • Package Level 1 Length:
    280 mm
  • Package Level 1 Gross Weight:
    1.795 kg
  • Package Level 1 EAN:
    4013614417597

Environmental

  • Ambient Air Temperature:
    Operation -20 ... +55 °C
    Storage -40 ... +80 °C
  • Maximum Operating Altitude Permissible:
    2000 m
  • Resistance to Shock acc. to IEC 60068-2-27:
    11 ms Pulse 15g
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    5g / 5 ... 150 Hz
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Technical

  • Contactor Starter Type:
    Compact Reversing Contactor with Normal Interlock
  • Number of Auxiliary Contacts NC:
    1
  • Number of Auxiliary Contacts NO:
    0
  • Number of Main Contacts NC:
    0
  • Number of Main Contacts NO:
    3
  • Number of Poles:
    4
  • Pollution Degree:
    3
  • Rated Frequency (f):
    Main Circuit 60 Hz
    Main Circuit 50 Hz
    Main Circuit DC
  • Rated Impulse Withstand Voltage (Uimp):
    Main Circuit 6 kV
  • Rated Insulation Voltage (Ui):
    690 V
    acc. to UL/CSA 600 V
  • Rated Operational Current AC-1 (Ie):
    (220 / 240 V) 40 °C 20 A
    (220 / 240 V) 55 °C 16 A
    (380 / 440 V) 40 °C 20 A
    (380 / 440 V) 55 °C 16 A
    (690 V) 40 °C 6 A
    (690 V) 55 °C 6 A
  • Rated Operational Current AC-3 (Ie):
    (220 / 230 / 240 V) 55 °C 11.3 A
    (380 / 400 V) 55 °C 11.5 A
    (440 V) 55 °C 10.1 A
    (500 V) 55 °C 9.2 A
    (690 V) 55 °C 3.8 A
  • Rated Operational Voltage:
    Main Circuit 690 V AC
  • Conventional Free-air Thermal Current (Ith):
    Main Circuit 20 A
  • Rated Control Circuit Voltage (Uc):
    220 ... 240 V AC
  • Coil Operating Limits:
    (acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
  • Degree of Protection:
    Main Circuit Terminals IP20
  • Mechanical Durability:
    10000000 cycle
  • Mounting on DIN Rail:
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • Power Loss:
    at Rated Operating Conditions per Pole 2 W
  • Standards:
    IEC/EN 60947-1
    IEC/EN 60947-4-1
    IEC/EN 60947-5-1
    UL 60947-1
    UL 60947-4-1

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA:
    Main Circuit 600 V AC
  • Horsepower Rating UL/CSA:
    (208 V AC) Three Phase 3 Hp
    (220 ... 240 V AC) Single Phase 1.5 Hp
    (220 ... 240 V AC) Three Phase 3 Hp
    (440 ... 480 V AC) Three Phase 5 Hp
    (550 ... 600 V AC) Three Phase 5 Hp
  • General Use Rating UL/CSA:
    (600 V AC) 16 A

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    Q
  • eClass:
    7.0 27371009
  • ETIM 4:
    EC000066 - Magnet contactor, AC-switching
  • ETIM 5:
    EC000010 - Starter combination

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
