View larger

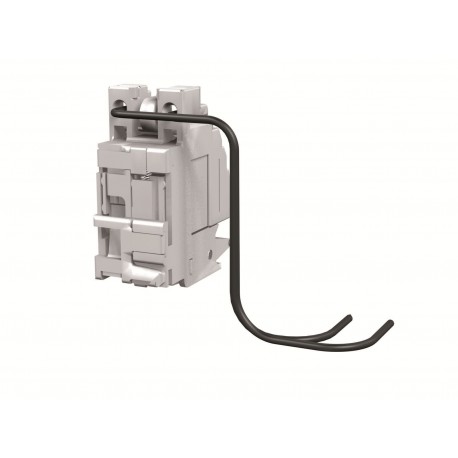

1SDA066406R1 ABB UVR-C XT2-XT4 W 220-240Vac-220-250Vdc
1SDA066406R1
066406
ABB
1 Pcs.
Automation > Under voltage coil
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB UVR-C XT2-XT4 W 220-240Vac-220-250Vdc acts as a critical safety accessory in automated distribution panels, forcing a protective trip if system voltage fails. Such releases secure industrial infrastructure from potential hazards associated with sudden power interruptions.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXTCUVRCW5
- E-Number (Finland): 3638721
- EAN: 8015644692582
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.12 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 110 mm
- Package Level 1 Height: 60 mm
- Package Level 1 Depth / Length: 140 mm
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXTCUVRCW5 |
| E-Number (Finland) | 3638721 |
| EAN | 8015644692582 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.12 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 0.126 kg |
| Package Level 1 EAN | 8015644692582 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Voltage (Ur) | 220 ... 240 V AC |
| 220 ... 250 V DC | |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT2, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000721R0502 |
| Classifications | |
| ETIM 7 | EC001022 - Under voltage coil |
| ETIM 8 | EC001022 - Under voltage coil |
| ETIM 9 | EC001022 - Under voltage coil |
| IDEA Granular Category Code (IGCC) | 4148 >> Under voltage coil |
| Object Classification Code | Q |
| UNSPSC | 39121010 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370417 |
