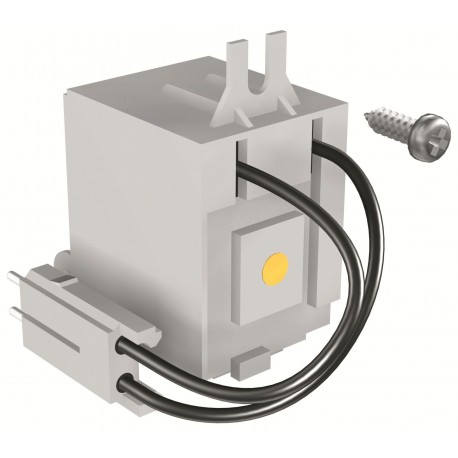

1SDA054887R1 ABB UVR-C T4-T5-T6 24...30 Vac/dc
1SDA054887R1
054887
ABB
1 Pcs.
UVR-C T4-T5-T6 24...30 Vac/dc
UVR-C MINIMUM 24-30VAC/DC - T4-T5-T6
Automation > Under voltage coil
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA054887R1 is an ABB undervoltage release mechanism engineered to provide safety tripping for T4, T5, and T6 series circuit breakers during power loss events. These components prevent accidental system re-energization after voltage sags. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KT5U8
- E-Number (Finland): 3655634
- E-Number (Norway): 4383742
- EAN: 8015644560157
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.169 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 110 mm
- Package Level 1 Height: 60 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KT5U8 |
| E-Number (Finland) | 3655634 |
| E-Number (Norway) | 4383742 |
| EAN | 8015644560157 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.169 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 0.178 kg |
| Package Level 1 EAN | 8015644560157 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T4, T5, T6 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Rated Voltage (Ur) | 24 ... 30 V AC |
| 24 ... 30 V DC | |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000436R0601 |
| External Classifications and Standards | |
| ETIM 9 | EC001022 - Under voltage coil |
| ETIM 10 | EC001022 - Under voltage coil |
| IDEA Granular Category Code (IGCC) | 4148 >> Under voltage coil |
| Object Classification Code | Q |
| UNSPSC | 39121010 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370417 |
