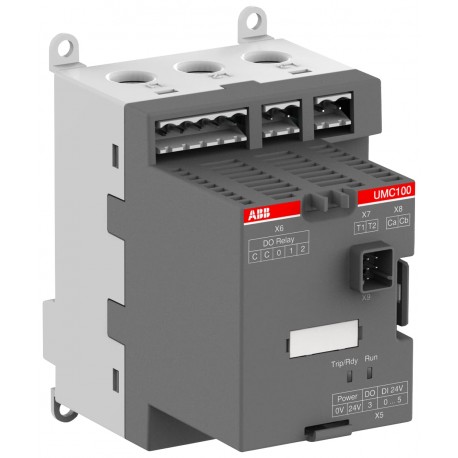

1SAJ530000R1100 ABB UMC100.3 UC Universal Motor Controller 110-240 V AC/DC
1SAJ530000R1100
530000
ABB
1 Pcs.
UMC100.3 UC Universal Motor Controller 110-240 V AC/DC
UMC100 Universal Motor Controller 110-24
UMC100.3 UC, Supply 110-240 V AC/DC, 6DI, 4 DO, PTC input
Automation > Motor management device
UMC and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SAJ530000R1100 universal motor controller functions as an advanced protection and management unit for low-voltage motors in industrial plants. Motor controllers oversee thermal conditions, operational currents, and electrical faults to safeguard critical rotating equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85371091
- Product Main Type: UMC100.3 UC
- Data Sheet, Technical Information: 2CDC135032D0204
- Instructions and Manuals: 1SAC200339M0001
- CAD Dimensional Drawing: 2CDC001079B0201
- EPLAN Data: 9AAC181892_EPLAN
- Product Net Width: 70 mm
- Product Net Depth / Length: 107 mm
- Product Net Height: 106 mm
- Product Net Weight: 315 g
- Connecting Capacity: 1x 0.2-2.5 mm²
- Minimum Mounting Distance: 0 mm
- Mounting Position: 1 ... 6
- Number of Poles: 3P
- Pollution Degree: 3
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85371091 |
| Product Main Type | UMC100.3 UC |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC135032D0204 |
| Instructions and Manuals | 1SAC200339M0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC181892_EPLAN |
| Dimensions | |
| Product Net Width | 70 mm |
| Product Net Depth / Length | 107 mm |
| Product Net Height | 106 mm |
| Product Net Weight | 315 g |
| Technical | |
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Minimum Mounting Distance | 0 mm |
| Mounting Position | 1 ... 6 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | Approximately 3.5 W |
| Rated Control Supply Voltage (Us) | 110 ... 240 V AC/DC |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Supply Circuit 50/60 Hz | |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 4 kV |
| Rated Operational Current (Ie) | 63 A |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Main Circuit 1000 V AC | |
| Recommended Screw Driver | Pozidriv 1 |
| Setting Range | 0.24 ... 63 A |
| Standards | CAN/CSA C22.2 No.60947-1 |
| CAN/CSA C22.2 No.60947-4-1 | |
| IEC/EN 60947-1 | |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| IEC/EN 60947-8 | |
| UL 508 | |
| Terminal Type | Screw Terminals |
| Tightening Torque | Auxiliary Circuit 0.5 N·m |
| Control Circuit 0.5 N·m | |
| Trip Class | class 5E |
| class 10E | |
| class 20E | |
| class 30E | |
| class 40E | |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | 1x 28-12 AWG |
| Maximum Operating Voltage UL/CSA | Auxiliary Circuit 230 V AC/DC |
| Main Circuit 600 V AC | |
| Tightening Torque UL/CSA | Auxiliary Circuit 8 in·lb |
| Control Circuit 8 in·lb | |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +60 °C |
| Storage -25 ... +70 °C | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 15g 1 shock 11 ms |
| Resistance to Vibrations | 4g 2 ... 100 Hz |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA983001-4501 |
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006538 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| ABS Certificate | 17-HG1610225-PDA |
| ATEX Certificate | Not available |
| CB Certificate | DK-41658-A1-UL |
| CCC Certificate | 2015010309791750 |
| CQC Certificate | CQC2015010309791750 |
| cULus Certificate | 20141015_E48139 |
| Declaration of Conformity - CCC | 2020980309000543 |
| Declaration of Conformity - CE | 1SVD981038-00 |
| DNV Certificate | TAA000015X-revision4 |
| EU Data Act Compliance Declaration | 1SAC200463M0001 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 122 mm |
| Package Level 1 Height | 117 mm |
| Package Level 1 Gross Weight | 325 g |
| Package Level 1 EAN | 4013614496929 |
| External Classifications and Standards | |
| eClass | V11.0 : 27370804 |
| E-Number (Finland) | 3709069 |
| E-Number (Norway) | 4552621 |
| ETIM 6 | EC002572 - Motor management device |
| ETIM 7 | EC002572 - Motor management device |
| ETIM 8 | EC002572 - Motor management device |
| ETIM 9 | EC002572 - Motor management device |
| IDEA Granular Category Code (IGCC) | 4354 >> Motor control centers |
| Object Classification Code | B |
| UNSPSC | 39121104 |
