View larger
Images are for illustrative purposes only. Please refer to data sheet for details

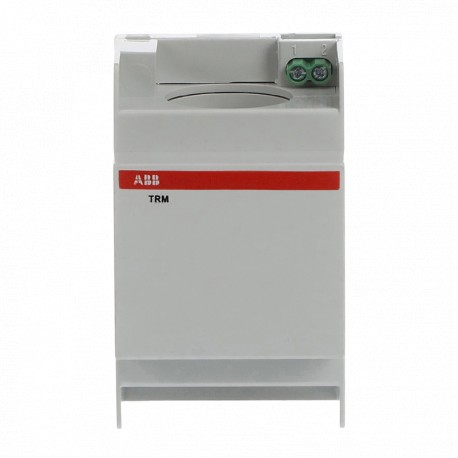

2CSM029000R1211 ABB TRM Toroidal Transformer
2CSM029000R1211
029000
ABB
1 Pcs.
TRM Toroidal Transformer
TRM Current Transformer
Toroidal Transformer TRM
Automation > Current transformer
RD2 TRM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Current Limit Function | FS 5 |
| Apparent Power Output | 5 V·A |
| Secondary Output Connection | Plug-in connection |
| Model Number | Through-feed current converter |
| Number of Inputs | Primary 1 |
| Meter Type | modular |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5628 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220119 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Product Net Width | 0.058 m |
| Product Net Height | 0.085 m |
| Product Net Depth / Length | 0.058 m |
| Product Net Weight | 0.130 kg |
| Inside Diameter | 29 mm |
| Bore Diameter | 18 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.17 kg |
| E-Number (Norway) | 1629761 |
| E-Number (Sweden) | 2161648 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5628 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0424 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| UNSPSC | 39121032 |
| eClass | V11.0 : 27210902 |
| IDEA Granular Category Code (IGCC) | 4189 >> Torroidal Current Transformers |
| Object Classification Code | F |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated secondary apparent power (EF007470) | 5 VA |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | Yes |
| With contact protection (EF008186) | Yes |
| Height opening (EF012757) | 58 mm |
| Width opening (EF012758) | 58 mm |
| Opening diameter (EF005153) | 18 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | Yes |
| Secondary connection (EF021093) | Plug-in connection |
| Number of primary inputs (EF006947) | 1 |
