View larger
Images are for illustrative purposes only. Please refer to data sheet for details

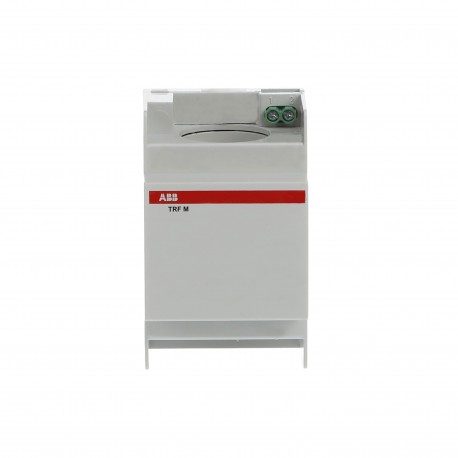

2CSM100050R1111 ABB TRFM/40 Current modular transformer
2CSM100050R1111
100050
ABB
1 Pcs.
TRFM/40 Current modular transformer
Transf. modular TRFM/40 40A
Automation > Current transformer
Measure, various ITSCE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Current Rating | 40 A |
| Rated Primary Current (Ipn) | 40 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Apparent Power Output | 5 V·A |
| Secondary Output Connection | Plug-in connection |
| Model Number | Through-feed current converter |
| Number of Inputs | Primary 1 |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5716 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230928 |
| REACH Information | No data - If REACH inform is not yet available for a certain product |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Product Net Width | 0.054 m |
| Product Net Height | 0.084 m |
| Product Net Depth / Length | 0.098 m |
| Product Net Weight | 0.165 kg |
| Bore Diameter | 30 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.721 kg |
| E-Number (Norway) | 8261070 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5716 |
| EU Data Act Compliance Declaration | Not applicable |
| Installation | |
| Instructions and Manuals | 2CSC446012B0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0430 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| eClass | V11.0 : 27210902 |
| Object Classification Code | T |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 40 A |
| Rated secondary current (EF007471) | 5 A |
| Rated secondary apparent power (EF007470) | 5 VA |
| Accuracy class (EF008842) | 3 |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | Yes |
| With contact protection (EF008186) | Yes |
| Height opening (EF012757) | 29 mm |
| Width opening (EF012758) | 29 mm |
| Opening diameter (EF005153) | 30 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | Yes |
| Secondary connection (EF021093) | Plug-in connection |
| Number of primary inputs (EF006947) | 1 |
