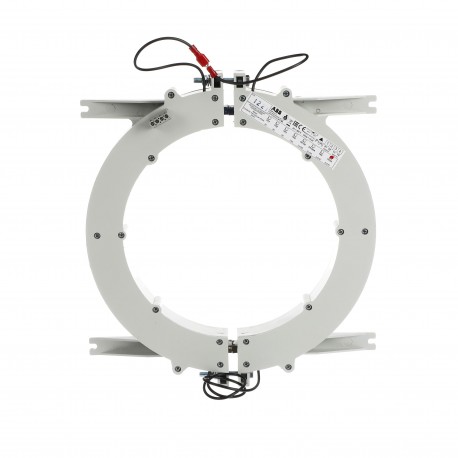

2CSG210200R1211 ABB TR5/A Toroidal Transformer
2CSG210200R1211
210200
ABB
1 Pcs.
Automation > Current transformer
RCQ, RD
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 2CSG210200R1211 toroidal transformer operates as an openable through-feed current converter designed to facilitate current measurement in existing electrical installations without disconnecting conductors. Such toroidal units are standard in panel building for energy auditing and circuit monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Current Limit Function: FS 5
- Apparent Power Output: 630 V·A
- Secondary Output Connection: Screw connection
- Model Number: Through-feed current converter
- Number of Inputs: Primary 1
- Meter Type: openable
- RoHS Declaration: 9AKK106713A5628
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220119
- REACH Declaration: 9AKK108467A9482
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20240429
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Business
- Product Net Width: 0.290 m
More info
▲| Technical | |
|---|---|
| Current Limit Function | FS 5 |
| Apparent Power Output | 630 V·A |
| Secondary Output Connection | Screw connection |
| Model Number | Through-feed current converter |
| Number of Inputs | Primary 1 |
| Meter Type | openable |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5628 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220119 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Dimensions | |
| Product Net Width | 0.290 m |
| Product Net Height | 0.310 m |
| Product Net Depth / Length | 0.055 m |
| Product Net Weight | 1.350 kg |
| Inside Diameter | 210 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.45 kg |
| E-Number (Norway) | 1629767 |
| E-Number (Sweden) | 2161645 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5628 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0424 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| UNSPSC | 39121032 |
| eClass | V11.0 : 27210902 |
| IDEA Granular Category Code (IGCC) | 4189 >> Torroidal Current Transformers |
| Object Classification Code | F |
