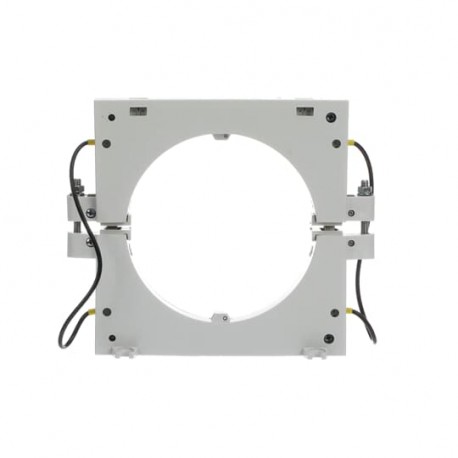

ABB 2CSG110200R1211 2CSG110200R1211 ABB TR4/A Toroidal Transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG110200R1211 ABB TR4/A Toroidal Transformer

2CSG110200R1211

110200

ABB

1 Pcs.

TR4/A Toroidal Transformer TR4/A D110 SPLIT CORE SWITCH Toroidal Transformer TR

Automation > Current transformer
RCQ, RD

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilizing an ABB 2CSG110200R1211 openable toroidal transformer simplifies the integration of monitoring devices into existing electrical infrastructure where cables cannot be easily disconnected. These openable sensors facilitate rapid retrofitting for power metering and earth leakage detection units.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Current Limit Function: FS 5
  • Secondary Output Connection: Screw connection
  • Model Number: Through-feed current converter
  • Number of Inputs: Primary 1
  • Meter Type: openable
  • RoHS Declaration: 9AKK106713A5628
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20220119
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240429
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Business
  • Product Net Width: 0.180 m
  • Product Net Height: 0.150 m

More info

▲
Technical
Current Limit FunctionFS 5
Secondary Output ConnectionScrew connection
Model NumberThrough-feed current converter
Number of InputsPrimary 1
Meter Typeopenable
Material Compliance
RoHS Declaration9AKK106713A5628
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220119
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Dimensions
Product Net Width0.180 m
Product Net Height0.150 m
Product Net Depth / Length0.045 m
Product Net Weight0.500 kg
Inside Diameter110 mm
Bore Diameter240 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.6 kg
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5628
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107046A0424
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer
eClassV11.0 : 27210902
Object Classification CodeF

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
