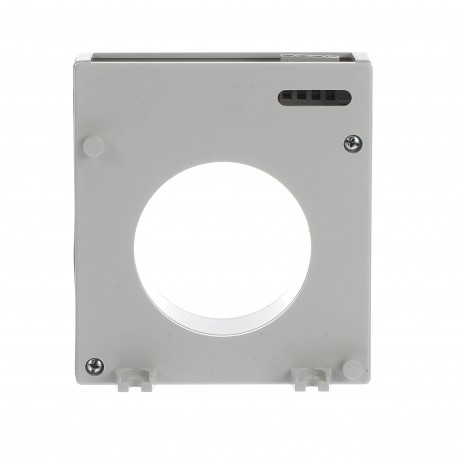

2CSG060100R1211 ABB TR2 Toroidal Transformer
2CSG060100R1211
060100
ABB
1 Pcs.
Automation > Current transformer
RCQ, RD
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A toroidal transformer like the Abb 2CSG060100R1211 functions as a precision sensing instrument used to monitor electrical currents in industrial control panels and power distribution networks. These units facilitate safe signal conversion for measurement devices, meters, and protective relays connected downstream.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Current Limit Function: FS 5
- Secondary Output Connection: Screw connection
- Model Number: Through-feed current converter
- Number of Inputs: Primary 1
- Meter Type: not openable
- RoHS Declaration: 9AKK106713A5628
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220119
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B: Business To Business
- Product Net Width: 0.100 m
- Product Net Height: 0.110 m
- Product Net Depth / Length: 0.050 m
- Product Net Weight: 0.230 kg
- Inside Diameter: 60 mm
More info
▲| Technical | |
|---|---|
| Current Limit Function | FS 5 |
| Secondary Output Connection | Screw connection |
| Model Number | Through-feed current converter |
| Number of Inputs | Primary 1 |
| Meter Type | not openable |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5628 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220119 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Dimensions | |
| Product Net Width | 0.100 m |
| Product Net Height | 0.110 m |
| Product Net Depth / Length | 0.050 m |
| Product Net Weight | 0.230 kg |
| Inside Diameter | 60 mm |
| Bore Diameter | 60 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.3 kg |
| E-Number (Finland) | 7037932 |
| E-Number (Norway) | 1629763 |
| E-Number (Sweden) | 2161642 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5628 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0424 |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
| UNSPSC | 39121032 |
| eClass | V11.0 : 27210902 |
| IDEA Granular Category Code (IGCC) | 4189 >> Torroidal Current Transformers |
| Object Classification Code | F |
