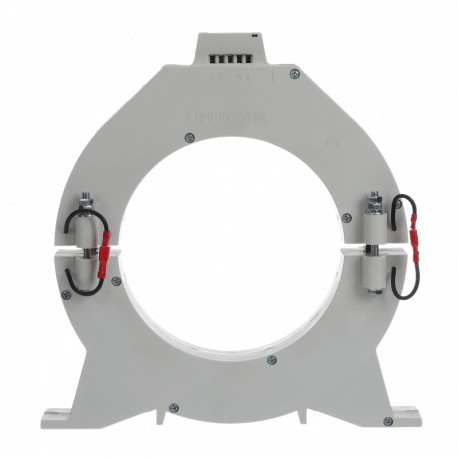

ABB 2CSG160200R1211 2CSG160200R1211 ABB TR160 A Toroidal Transformer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG160200R1211 ABB TR160 A Toroidal Transformer

2CSG160200R1211

160200

ABB

1 Pcs.

TR160 A Toroidal Transformer TR160/A D160 SPLIT CORE SWITCH Toroidal Transformer TR

Automation > Current transformer
RCQ, RD

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb TR160 A Toroidal Transformer functions as a through-feed current converter designed to step down high primary currents for safe measurement and metering applications in electrical switchgear. Such devices protect monitoring circuits and instrumentation by providing a proportional, isolated secondary output that connects to standard panel meters or protection relays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Current Limit Function: FS 5
  • Apparent Power Output: 1600 V·A
  • Secondary Output Connection: Screw connection
  • Model Number: Through-feed current converter
  • Number of Inputs: Primary 1
  • Meter Type: openable
  • RoHS Declaration: 9AKK106713A5628
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20220119
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240429
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Business
  • Product Net Width: 0.220 m

More info

▲
Technical
Current Limit FunctionFS 5
Apparent Power Output1600 V·A
Secondary Output ConnectionScrew connection
Model NumberThrough-feed current converter
Number of InputsPrimary 1
Meter Typeopenable
Material Compliance
RoHS Declaration9AKK106713A5628
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220119
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Dimensions
Product Net Width0.220 m
Product Net Height0.236 m
Product Net Depth / Length0.064 m
Product Net Weight1.150 kg
Inside Diameter160 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight1.25 kg
E-Number (Norway)1629770
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5628
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107046A0424
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer
UNSPSC39121032
eClassV11.0 : 27210902
Object Classification CodeF

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
