Product Overview

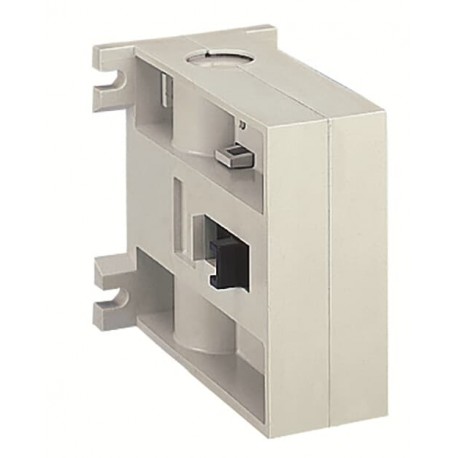

Abb 2CSG035100R1211 is a toroidal transformer configured to measure AC currents in electrical distribution panels by looping primary conductors through its central aperture. These devices provide isolated signals to measurement instruments and protect against system overloads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Current Limit Function: FS 5
  • Secondary Output Connection: Screw connection
  • Model Number: Through-feed current converter
  • Number of Inputs: Primary 1
  • Meter Type: not openable
  • RoHS Declaration: 9AKK106713A5628
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20220119
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20240429
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B: Business To Business
  • Product Net Width: 0.100 m
  • Product Net Height: 0.110 m

More info

▲
Technical
Current Limit FunctionFS 5
Secondary Output ConnectionScrew connection
Model NumberThrough-feed current converter
Number of InputsPrimary 1
Meter Typenot openable
Material Compliance
RoHS Declaration9AKK106713A5628
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220119
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Dimensions
Product Net Width0.100 m
Product Net Height0.110 m
Product Net Depth / Length0.050 m
Product Net Weight0.200 kg
Inside Diameter35 mm
Bore Diameter60 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.25 kg
E-Number (Finland)7037931
E-Number (Norway)1629762
E-Number (Sweden)2161641
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5628
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107046A0424
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer
UNSPSC39121032
eClassV11.0 : 27210902
IDEA Granular Category Code (IGCC)4189 >> Torroidal Current Transformers
Object Classification CodeF
